Removal [10/2017 - ]: Procedure

Refer to PROCEDURE - Step 3 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 3 [09/2020 - ]

See step  4 [10/2017 - 09/2020], or see step  4 [09/2020 - ]

Refer to PROCEDURE - Step 6

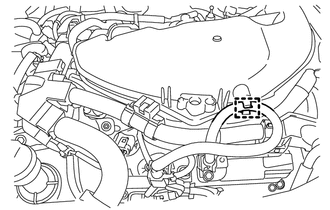

1. Disengage the clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

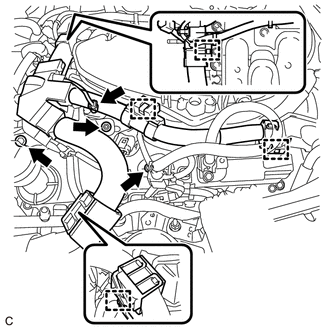

2. Disconnect the 2 camshaft timing oil control solenoid assembly connectors and water inlet with thermostat sub-assembly connector.
3. Remove the bolt to disconnect the engine wire from the timing chain cover assembly.

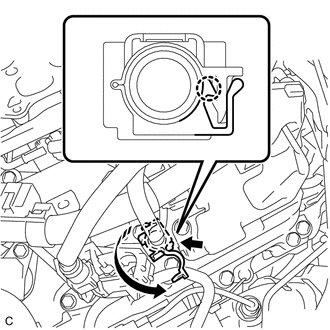

4. Disengage the claw and open the cover of the fuel hose clamp as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

5. Remove the fuel hose clamp from the fuel tube connector.

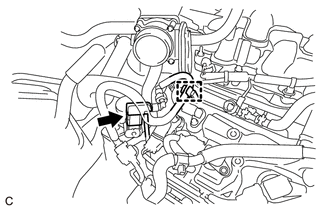

6. Disengage the clamp to disconnect the No. 2 fuel tube sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

7. Disengage the 4 clamps.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

8. Remove the 2 nuts to disconnect the engine wire from the cylinder head cover sub-assembly LH.
9. Disconnect the 2 VVT sensor connectors.
10. Disengage the clamp to disconnect the fuel tube sub-assembly.

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

11. Disconnect the fuel pump assembly connector.

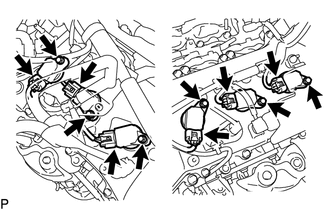

1. Disconnect the 6 ignition coil assembly connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the 6 bolts and 6 ignition coil assemblies.
   NOTE:

   If an ignition coil assembly has been struck or dropped, replace it.

   HINT:

   Arrange the removed parts in the correct order.

1. Remove the 6 spark plugs.
   NOTE:

   If a spark plug has been struck or dropped, replace it.

   HINT:

   Arrange the removed parts in the correct order.
