Removal [10/2017 - ]: Procedure

  1. REMOVE FUEL DELIVERY PIPE RH

    Refer to REMOVAL [10/2017 - ]

  2. REMOVE KNOCK CONTROL SENSOR

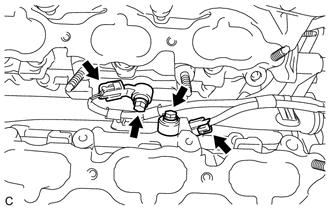

    1. Disconnect the 2 knock control sensor connectors.
      GTY833648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and 2 knock control sensors from the cylinder block sub-assembly.
