Removal [09/2020 - ]: Procedure

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 2

HINT:

Only perform this procedure when replacement of the intake air sound creator is necessary.

1. Loosen the hose clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the bolt and intake air sound creator from the air cleaner cap with air cleaner hose.

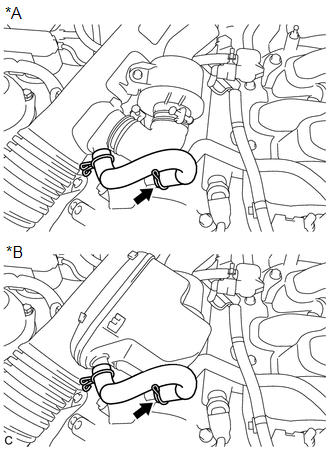

1. Slide the clip and disconnect the No. 2 ventilation hose from the cylinder head cover sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	w/ Intake Air Sound Creator
   *B	w/o Intake Air Sound Creator

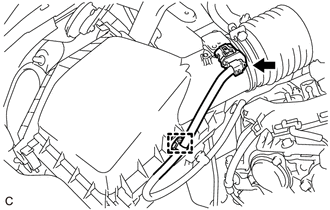

2. Disconnect the mass air flow meter sub-assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Disconnect the wire harness clamp from the air cleaner cap with air cleaner hose.

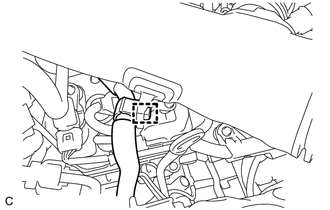

4. Disengage the clamp to disconnect the fuel vapor feed hose from the air cleaner cap with air cleaner hose.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

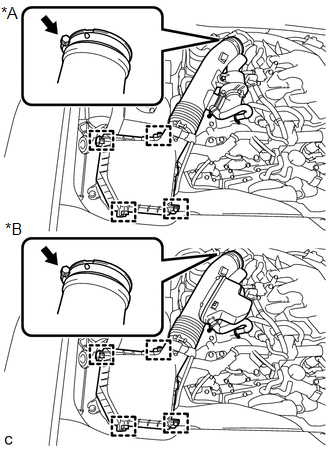

5. Release the 4 clamps.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	w/ Intake Air Sound Creator
   *B	w/o Intake Air Sound Creator

6. Loosen the hose clamp and remove the air cleaner cap with air cleaner hose from the throttle body with motor assembly.

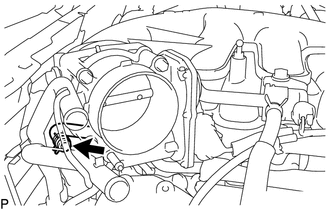

1. Slide the clip and disconnect the No. 16 water by-pass hose from the throttle body with motor assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the throttle body with motor assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

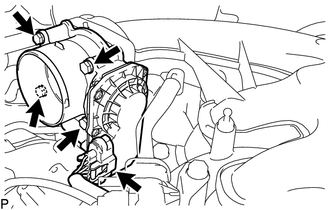

3. Remove the 4 bolts and separate the throttle body with motor assembly from the intake air surge tank assembly.

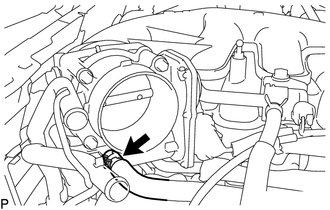

4. Slide the clip and disconnect the water by-pass hose to remove the throttle body with motor assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

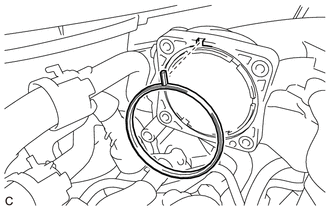

1. Remove the throttle body gasket from the intake air surge tank assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
