Inspection [07/2020 - ]: Procedure
- INSPECT AIR FUEL RATIO SENSOR
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 1(HA1A) - 2(+B)
1(HA2A) - 2(+B)20°C (68°F) 1.6 to 3.2 Ω 3(A1A+) - 4(A1A-)

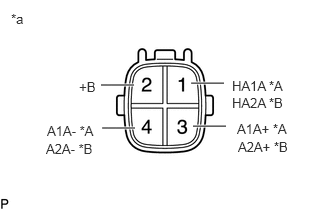

3(A2A+) - 4(A2A-)Always 10 kΩ or higher *A for Bank 1 *B for Bank 2 *a Component without harness connected
(Air Fuel Ratio Sensor)If the result is not as specified, replace the air fuel ratio sensor.
- Measure the resistance according to the value(s) in the table below.
