Removal [07/2020 - ]: Procedure

REMOVE FRONT FENDER SEAL LH
Refer to PROCEDURE - Step 1
REMOVE FRONT FENDER SEAL RH
Refer to PROCEDURE - Step 2
REMOVE FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 17 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 17 [05/2023 - ]
REMOVE FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY RH
Refer to PROCEDURE - Step 18 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 18 [05/2023 - ]
REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 19 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 19 [05/2023 - ]

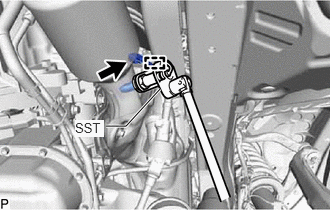

REMOVE AIR FUEL RATIO SENSOR (for Bank 1)

Disconnect the air fuel ratio sensor connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Detach the wire harness 2 clamps.
Using SST, remove the air fuel ratio sensor from the exhaust manifold sub-assembly LH.
- SST: 09224-00012
NOTE:
If the air fuel ratio sensor has been struck or dropped, replace it.

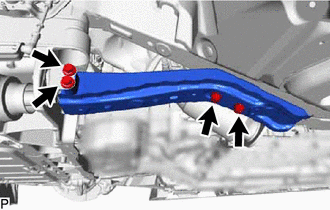

REMOVE REAR LOWER ARM MOUNTING REINFORCEMENT SUB-ASSEMBLY RH

Remove the 4 bolts and rear lower arm mounting reinforcement sub-assembly RH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

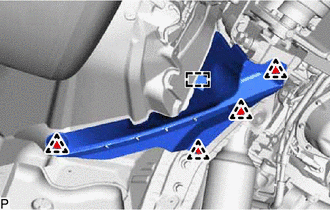

REMOVE ENGINE SIDE COVER RH

Remove the 4 clips and clamp from the engine side cover RH.

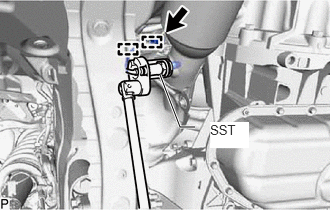

REMOVE AIR FUEL RATIO SENSOR (for Bank 2)

Disconnect the air fuel ratio sensor connector.

Detach the wire harness clamp.
Using SST, remove the air fuel ratio sensor from the exhaust manifold sub-assembly RH.
- SST: 09224-00012
NOTE:
If the air fuel ratio sensor has been struck or dropped, replace it.
