Components [07/2020 - ]

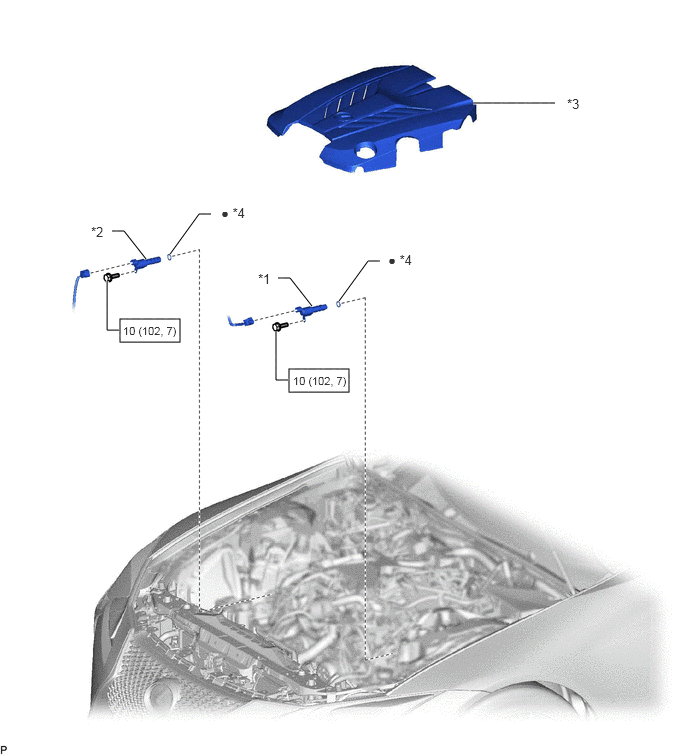

Fig 1: Camshaft Oil Control Valve Replacement Components With Torque Specifications
GTY807801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY LH *2 CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY RH
*3 V-BANK COVER SUB-ASSEMBLY *4 O-RING
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
