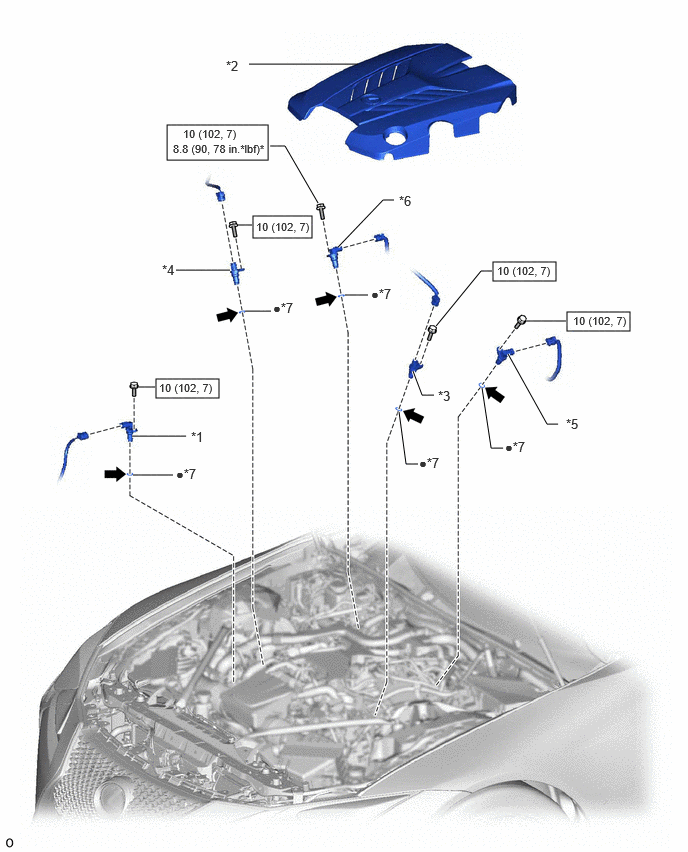

Components [07/2020 - ]
| *1 | CAMSHAFT POSITION SENSOR | *2 | V-BANK COVER SUB-ASSEMBLY |
| *3 | VVT SENSOR (for Exhaust Side of Bank 1) | *4 | VVT SENSOR (for Exhaust Side of Bank 2) |
| *5 | VVT SENSOR (for Intake Side of Bank 1) | *6 | VVT SENSOR (for Intake Side of Bank 2) |
| *7 | O-RING | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | * | For use with a union nut wrench | |
| • | Non-reusable part | Engine Oil |
