Removal [07/2020 - ]: Procedure
- REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 2 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 2 [05/2023 - ]
- REMOVE CAMSHAFT POSITION SENSOR

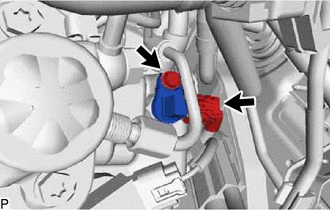

- Disconnect the camshaft position sensor connector.
- Remove the bolt and camshaft position sensor from the cylinder head cover sub-assembly.NOTE:
If the camshaft position sensor has been struck or dropped, replace it.
- Perform this procedure only when reusing the camshaft position sensor.
- Remove the O-ring from the camshaft position sensor.NOTE:
- Make sure to only remove the O-ring with bare hands.
- When removing the O-ring, be careful not to damage the O-ring groove of the camshaft position sensor.
- If the O-ring groove of the camshaft position sensor is damaged, replace the camshaft position sensor with a new one.
- Remove the O-ring from the camshaft position sensor.
- Disconnect the camshaft position sensor connector.
- REMOVE VVT SENSOR (for Exhaust Side of Bank 1)

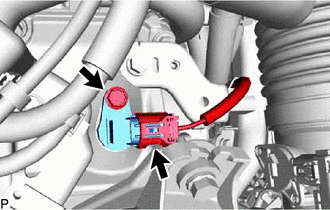

- Disconnect the VVT sensor connector.
- Remove the bolt and VVT sensor from the cylinder head cover sub-assembly LH.NOTE:
If the VVT sensor has been struck or dropped, replace it.
- Perform this procedure only when reusing the VVT sensor.
- Remove the O-ring from the VVT sensor.NOTE:
- Make sure to only remove the O-ring with bare hands.
- When removing the O-ring, be careful not to damage the O-ring groove of the VVT sensor.
- If the O-ring groove of the VVT sensor is damaged, replace the VVT sensor with a new one.
- Remove the O-ring from the VVT sensor.
- Disconnect the VVT sensor connector.
- REMOVE VVT SENSOR (for Exhaust Side of Bank 2)

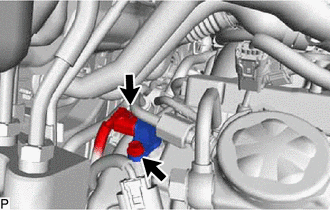

- Disconnect the VVT sensor connector.
- Remove the bolt and VVT sensor from the cylinder head cover sub-assembly.NOTE:
If the VVT sensor has been struck or dropped, replace it.
- Perform this procedure only when reusing the VVT sensor.
- Remove the O-ring from the VVT sensor.NOTE:
- Make sure to only remove the O-ring with bare hands.
- When removing the O-ring, be careful not to damage the O-ring groove of the VVT sensor.
- If the O-ring groove of the VVT sensor is damaged, replace the VVT sensor with a new one.
- Remove the O-ring from the VVT sensor.
- Disconnect the VVT sensor connector.
- REMOVE VVT SENSOR (for Intake Side of Bank 2)

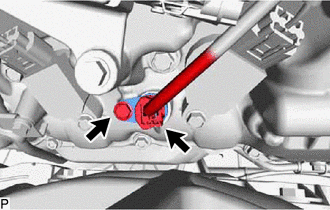

- Disconnect the VVT sensor connector.
- Remove the bolt and VVT sensor from the cylinder head cover sub-assembly.NOTE:
If the VVT sensor has been struck or dropped, replace it.
- Perform this procedure only when reusing the VVT sensor.
- Remove the O-ring from the VVT sensor.NOTE:
- Make sure to only remove the O-ring with bare hands.
- When removing the O-ring, be careful not to damage the O-ring groove of the VVT sensor.
- If the O-ring groove of the VVT sensor is damaged, replace the VVT sensor with a new one.
- Remove the O-ring from the VVT sensor.
- Disconnect the VVT sensor connector.
- REMOVE NO. 3 FUEL PIPE SUB-ASSEMBLY
Refer to REMOVAL [07/2020 - 05/2023] , or refer to REMOVAL [05/2023 - ]
- REMOVE VVT SENSOR (for Intake Side of Bank 1)

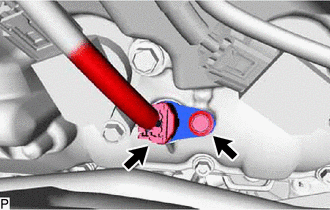

- Disconnect the VVT sensor connector.
- Remove the bolt and VVT sensor from the cylinder head cover sub-assembly LH.NOTE:
If the VVT sensor has been struck or dropped, replace it.
- Perform this procedure only when reusing the VVT sensor.
- Remove the O-ring from the VVT sensor.NOTE:
- Make sure to only remove the O-ring with bare hands.
- When removing the O-ring, be careful not to damage the O-ring groove of the VVT sensor.
- If the O-ring groove of the VVT sensor is damaged, replace the VVT sensor with a new one.
- Remove the O-ring from the VVT sensor.
- Disconnect the VVT sensor connector.
