Components [07/2020 - ]

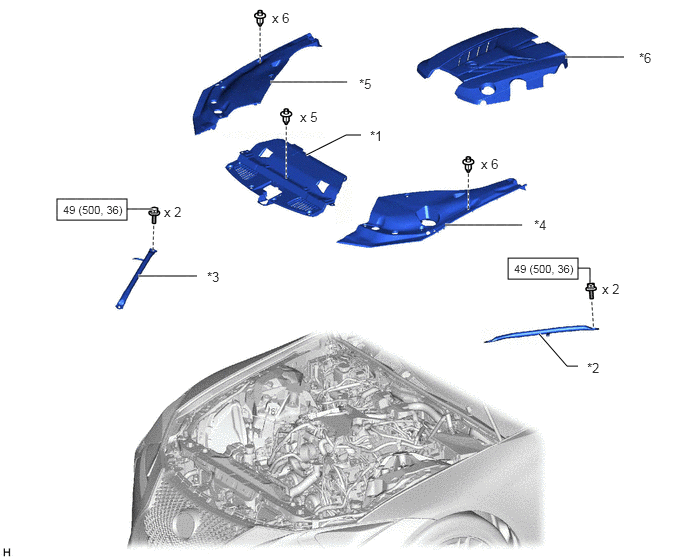

Fig 1: Camshaft Timing Control Motor Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	LOWER RADIATOR AIR DEFLECTOR	*2	RADIATOR SUPPORT TO CROSS MEMBER BRACE SUB-ASSEMBLY LH
*3	RADIATOR SUPPORT TO CROSS MEMBER BRACE SUB-ASSEMBLY RH	*4	RADIATOR SUPPORT TO FRAME SEAL LH
*5	RADIATOR SUPPORT TO FRAME SEAL RH	*6	V-BANK COVER SUB-ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

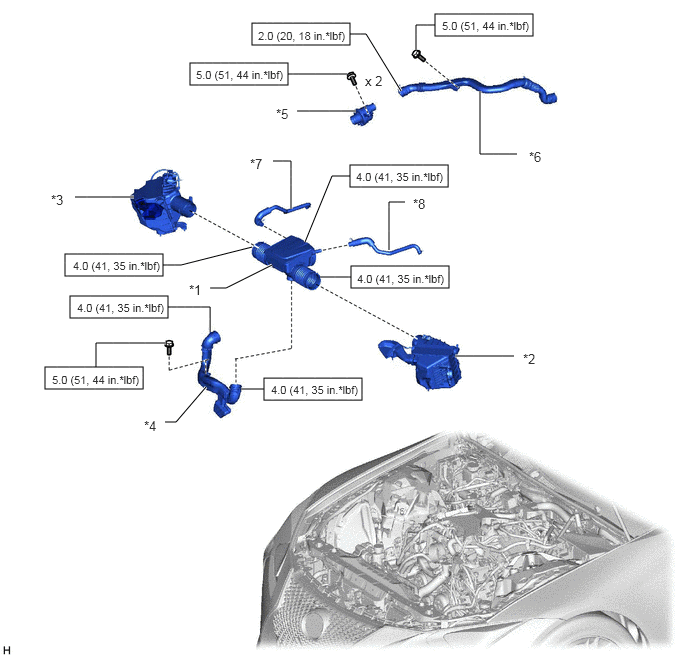

Fig 2: Camshaft Timing Control Motor Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	AIR CLEANER HOSE ASSEMBLY	*2	AIR CLEANER WITH ELEMENT ASSEMBLY LH
*3	AIR CLEANER WITH ELEMENT ASSEMBLY RH	*4	INTAKE AIR CONNECTOR PIPE
*5	INTAKE AIR SOUND CREATOR	*6	NO. 2 INTAKE AIR CONNECTOR PIPE
*7	NO. 2 PCV HOSE	*8	NO. 3 PCV HOSE
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

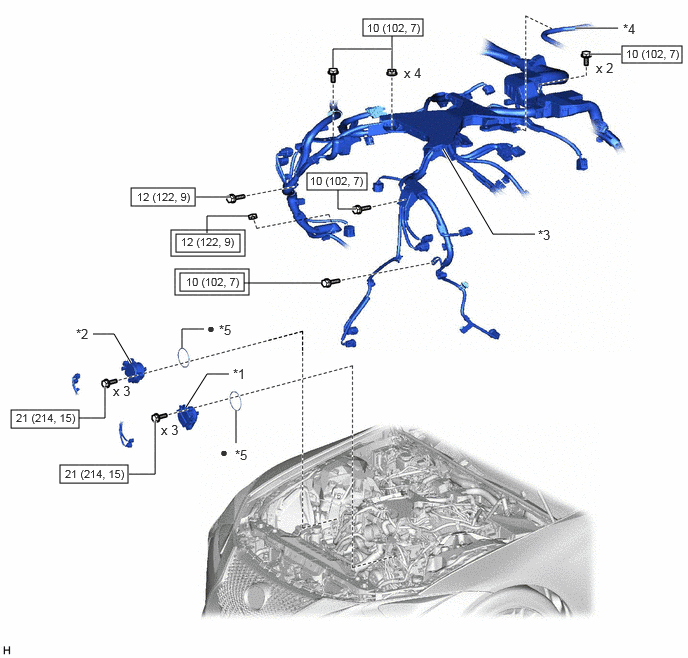

Fig 3: Camshaft Timing Control Motor Replacement Components With Torque Specifications (3 Of 3)

*1	CAMSHAFT TIMING CONTROL MOTOR WITH EDU ASSEMBLY LH	*2	CAMSHAFT TIMING CONTROL MOTOR WITH EDU ASSEMBLY RH
*3	ENGINE WIRE	*4	FUEL TUBE SUB-ASSEMBLY
*5	O-RING	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
•	Non-reusable part	-	-
