Installation [07/2020 - ]: Procedure

1. Install the No. 2 ECM bracket to the ECM with the 2 screws.

   Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)

1. Install the No. 1 ECM bracket to the ECM with the 2 screws.

   Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)

1. Install the ECM with the bolt and nut.
   NOTE:

   If the ECM has been struck or dropped, replace it.

   Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

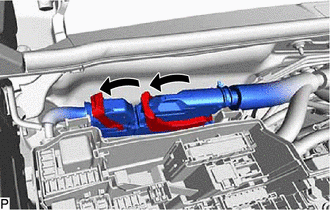

2. Connect the 2 ECM connectors.
   NOTE:

   • When connecting the connectors, make sure that dirt, water or other foreign matter does not become stuck between the connectors and other parts.
   • Make sure that the 2 levers are securely locked.
