Removal [05/2023 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After the engine switch is turned off, there may be a waiting time beforedisconnecting the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [05/2023 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to REMOVAL [05/2023 - ]

  3. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

    Refer to REMOVAL [05/2023 - ]

  4. REMOVE ECM
    1. Push in the locks on the 2 levers, raise the 2 levers, and disconnect the 2 ECM connectors.

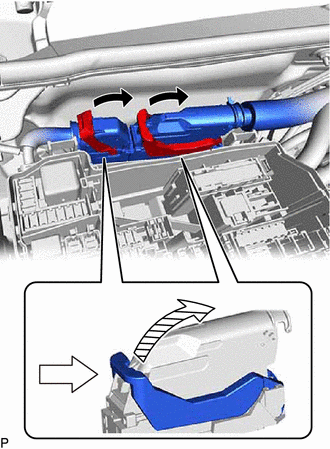

      GTY787903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Push
      Raise
    2. Remove the bolt and nut.

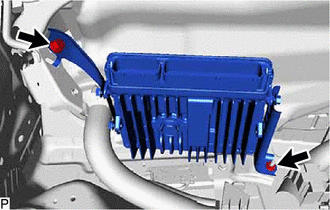

      GTY797294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the ECM.
      NOTE:

      If the ECM has been struck or dropped, replace it.

  5. REMOVE NO. 1 ECM BRACKET
    1. Remove the 2 screws and No. 1 ECM bracket from the ECM.

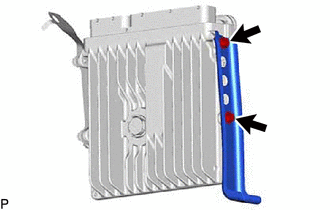

      GTY797292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 2 ECM BRACKET
    1. Remove the 2 screws and No. 2 ECM bracket from the ECM.

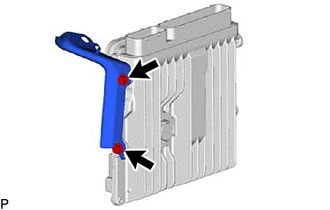

      GTY797295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
