Removal [07/2020 - ]: Procedure
- REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 2 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 2 [05/2023 - ]
- REMOVE RADIATOR SUPPORT TO FRAME SEAL RH
Refer to PROCEDURE - Step 1 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 1 [05/2023 - ]
- REMOVE RADIATOR SUPPORT TO FRAME SEAL LH
Refer to PROCEDURE - Step 2 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 2 [05/2023 - ]
- REMOVE LOWER RADIATOR AIR DEFLECTOR
Refer to PROCEDURE - Step 3 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 3 [05/2023 - ]
- DRAIN ENGINE OIL
Refer to PROCEDURE - Step 2 [07/2020 - 11/2021] , or refer to PROCEDURE - Step 2 [11/2021 - ]
- DISCONNECT NO. 2 PCV HOSE
See step 6
- DISCONNECT NO. 3 PCV HOSE
See step 7
- REMOVE AIR CLEANER HOSE ASSEMBLY
See step 8
- REMOVE ENGINE OIL TEMPERATURE SENSOR
- Disconnect the engine oil temperature sensor connector.

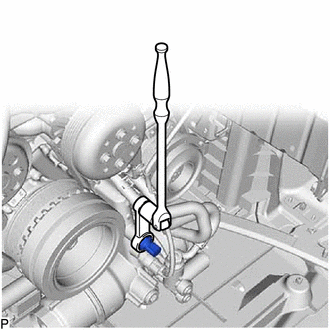

- Using a 22 mm ball joint lock nut wrench, remove the engine oil temperature sensor from the oil filter bracket sub-assembly.NOTE:
If the engine oil temperature sensor has been struck or dropped, replace it.
- Remove the gasket from the engine oil temperature sensor.
- Disconnect the engine oil temperature sensor connector.
