Components [07/2020 - ]

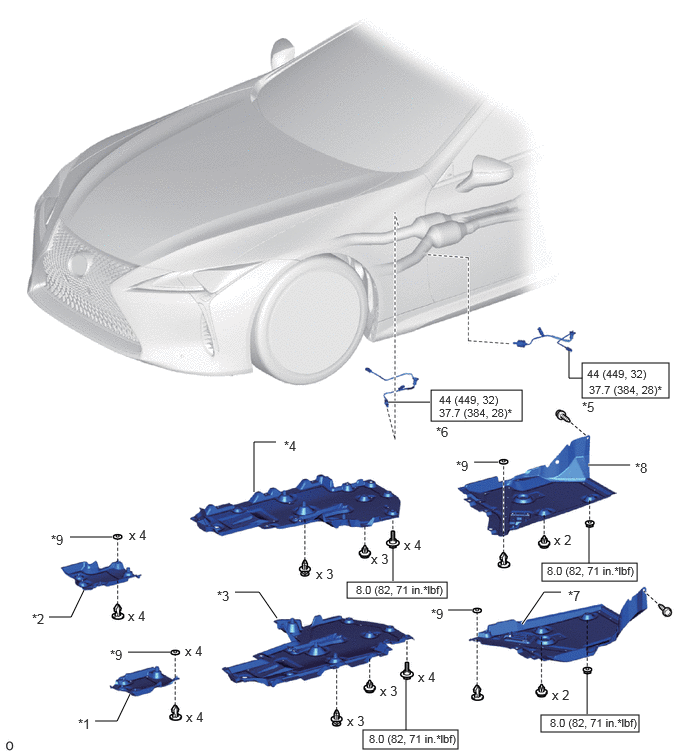

Fig 1: Heated Oxygen Sensor Replacement Components With Torque Specifications
GTY948260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT FENDER SEAL LH *2 FRONT FENDER SEAL RH
*3 FRONT FLOOR COVER LH *4 FRONT FLOOR COVER RH
*5 HEATED OXYGEN SENSOR (for Bank 1) *6 HEATED OXYGEN SENSOR (for Bank 2)
*7 REAR FLOOR SIDE MEMBER COVER LH *8 REAR FLOOR SIDE MEMBER COVER RH
*9 PLATE WASHER - -
N.m (kgf/cm, ft.lbf): Specified torque * For use with SST
