Removal [07/2020 - ]: Procedure

  1. REMOVE REAR FLOOR SIDE MEMBER COVER LH

    Refer to PROCEDURE - Step 5

  2. REMOVE REAR FLOOR SIDE MEMBER COVER RH

    Refer to PROCEDURE - Step 6

  3. REMOVE FRONT FENDER SEAL LH

    Refer to PROCEDURE - Step 1

  4. REMOVE FRONT FENDER SEAL RH

    Refer to PROCEDURE - Step 2

  5. REMOVE FRONT FLOOR COVER LH

    Refer to PROCEDURE - Step 3

  6. REMOVE FRONT FLOOR COVER RH

    Refer to PROCEDURE - Step 4

  7. REMOVE FRONT SEAT ASSEMBLY

    Refer to REMOVAL [07/2020 - 05/2023] , or refer to REMOVAL [05/2023 - ]

  8. DISCONNECT HEATED OXYGEN SENSOR CONNECTOR
    1. Fold back the floor carpet.

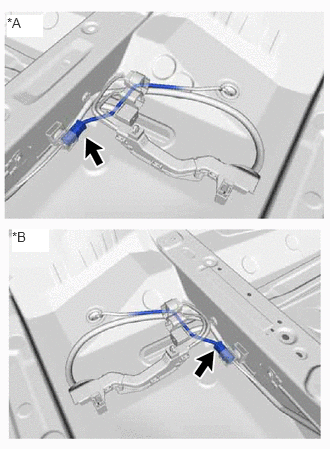

      GTY830632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Bank 1
      *B for Bank 2
    2. Disconnect the 2 heated oxygen sensor connectors.
  9. REMOVE HEATED OXYGEN SENSOR (for Bank 1)
    1. Detach the heated oxygen sensor grommet and clamp from the vehicle body.

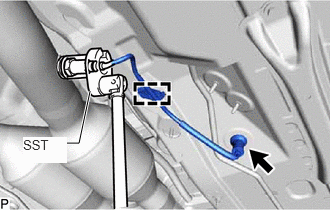

      GTY792947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
      • SST: 09224-00012
      NOTE:

      If the heated oxygen sensor has been struck or dropped, replace it.

  10. REMOVE HEATED OXYGEN SENSOR (for Bank 2)
    1. Detach the heated oxygen sensor grommet and clamp from the vehicle body.

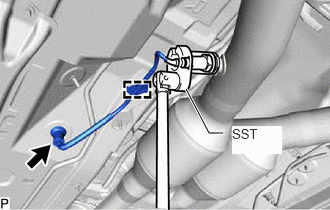

      GTY826966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
      • SST: 09224-00012
      NOTE:

      If the heated oxygen sensor has been struck or dropped, replace it.
