Removal [07/2020 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 2 [05/2023 - ]

  2. REMOVE IGNITION COIL ASSEMBLY

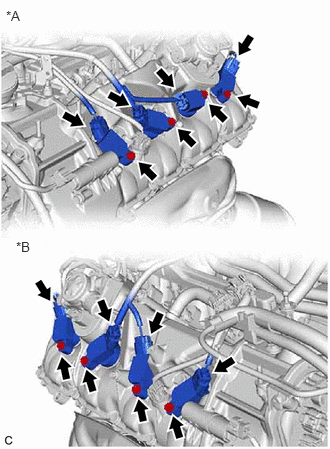

    1. Disconnect the 8 ignition coil assembly connectors.
      GTY781580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Bank 1
      *B for Bank 2
    2. Remove the 8 bolts and 8 ignition coil assemblies from the cylinder head cover sub-assembly and cylinder head cover sub-assembly LH.
      NOTE:

      If an ignition coil assembly has been struck or dropped, replace it.

      HINT:

      Arrange the removed parts in the correct order.

  3. REMOVE SPARK PLUG

    Refer to PROCEDURE - Step 3
