Removal [07/2020 - ]: Procedure

REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 2 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 2 [05/2023 - ]
REMOVE RADIATOR SUPPORT TO FRAME SEAL RH
Refer to PROCEDURE - Step 1 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 1 [05/2023 - ]
REMOVE RADIATOR SUPPORT TO FRAME SEAL LH
Refer to PROCEDURE - Step 2 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 2 [05/2023 - ]
REMOVE LOWER RADIATOR AIR DEFLECTOR
Refer to PROCEDURE - Step 3 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 3 [05/2023 - ]
REMOVE RADIATOR SUPPORT TO CROSS MEMBER BRACE SUB-ASSEMBLY RH
Refer to PROCEDURE - Step 13 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 13 [05/2023 - ]
REMOVE AIR CLEANER WITH ELEMENT ASSEMBLY RH
Refer to PROCEDURE - Step 28 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 28 [05/2023 - ]

REMOVE MASS AIR FLOW METER SUB-ASSEMBLY

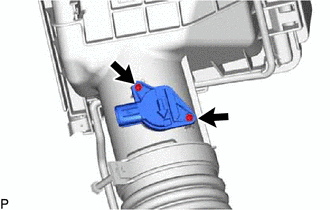

for Bank 2:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 2 screws and mass air flow meter sub-assembly.
NOTE:
If the mass air flow meter sub-assembly has been struck or dropped, replace it.

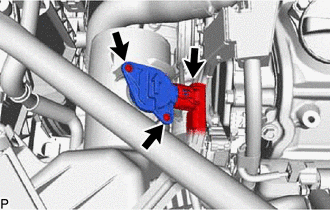

for Bank 1:

Disconnect the mass air flow meter sub-assembly connector.
Remove the 2 screws and mass air flow meter sub-assembly.
NOTE:
If the mass air flow meter sub-assembly has been struck or dropped, replace it.
