Removal [07/2020 - ]: Procedure

REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 2 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 2 [05/2023 - ]
REMOVE RADIATOR SUPPORT TO FRAME SEAL RH
Refer to PROCEDURE - Step 1 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 1 [05/2023 - ]
REMOVE RADIATOR SUPPORT TO FRAME SEAL LH
Refer to PROCEDURE - Step 2 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 2 [05/2023 - ]
REMOVE LOWER RADIATOR AIR DEFLECTOR
Refer to PROCEDURE - Step 3 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 3 [05/2023 - ]
DRAIN ENGINE COOLANT
Refer to REPLACEMENT [07/2020 - ]

DISCONNECT NO. 2 PCV HOSE

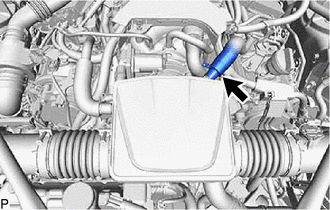

Slide the clip and disconnect the No. 2 PCV hose from the air cleaner hose assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DISCONNECT NO. 3 PCV HOSE

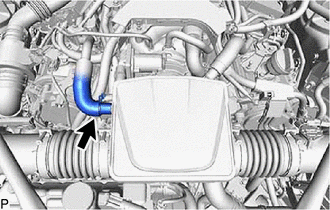

Slide the clip and disconnect the No. 3 PCV hose from the air cleaner hose assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE AIR CLEANER HOSE ASSEMBLY

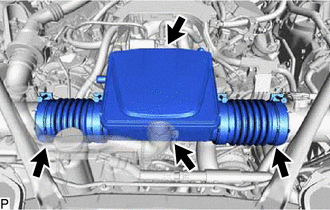

Loosen the 4 hose clamps and remove the air cleaner hose assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

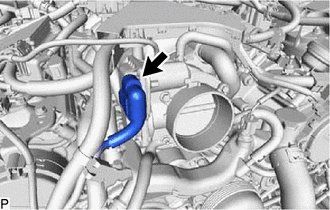

Disconnect the throttle body with motor assembly connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

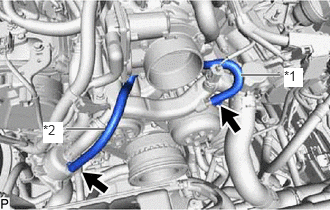

Slide the clip and disconnect the No. 4 water by-pass hose from the front water by-pass joint.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	No. 4 Water By-pass Hose
*2	No. 5 Water By-pass Hose

Slide the clip and disconnect the No. 5 water by-pass hose from the water inlet housing.

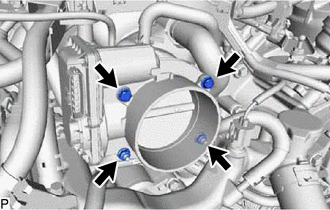

Remove the 2 bolts and 2 nuts from the throttle body with motor assembly.

Using an E6 "TORX" socket wrench, remove the 2 stud bolts, throttle body with motor assembly and gasket from the intake air surge tank assembly.

NOTE:

If the throttle body with motor assembly has been struck or dropped, replace it.

Slide the 2 clips, remove the No. 4 water by-pass hose and No. 5 water by-pass hose from the throttle body with motor assembly.
