Components [01/2017 - ]

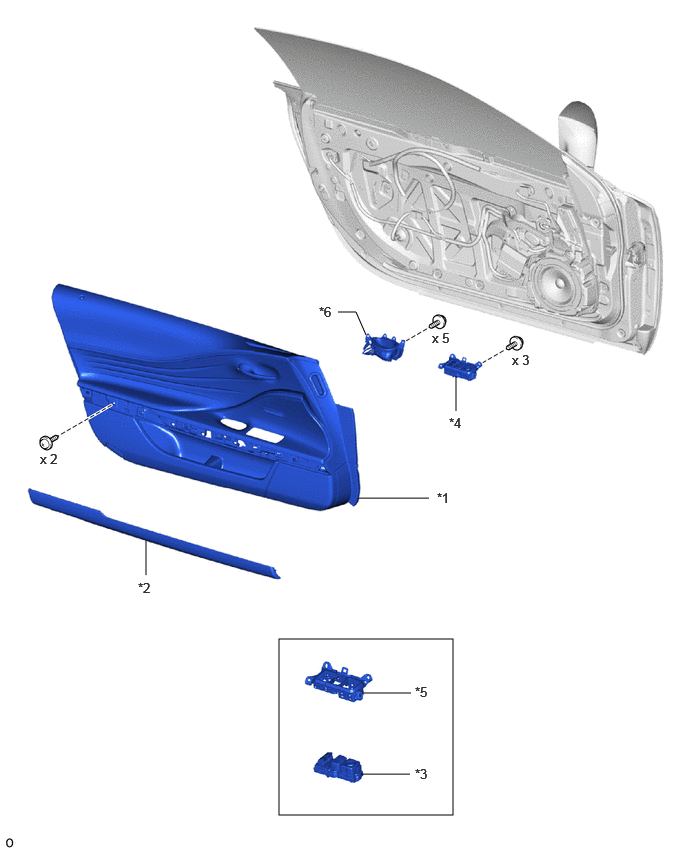

Fig 1: Power Window Master Switch Replacement Components
GTY782059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH *2 FRONT DOOR TRIM COVER SUB-ASSEMBLY LH
*3 MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY *4 MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH SWITCH BASE
*5 SWITCH BASE *6 PULL HANDLE
