Installation [01/2017 - ]: Procedure
- INSTALL FRONT AXLE HUB SUB-ASSEMBLY LH
- Install the front axle hub sub-assembly LH.
Refer to INSTALLATION [01/2017 - 05/2023] , or refer to INSTALLATION [05/2023 - ]
HINT:
The front speed sensor is a component of the front axle hub sub-assembly. If the front speed sensor malfunctions, replace the front axle hub sub-assembly.
- Install the front axle hub sub-assembly LH.
- INSTALL FRONT DISC LH
Refer to PROCEDURE - Step 4 [01/2017 - 05/2023] , or refer to PROCEDURE - Step 4 [05/2023 - ]
- INSTALL FRONT DISC BRAKE CYLINDER ASSEMBLY LH
Refer to INSTALLATION [01/2017 - 06/2019] , or refer to INSTALLATION [06/2019 - 05/2023] , or refer to INSTALLATION [05/2023 - ]
- INSTALL FRONT SKID CONTROL SENSOR WIRE
- for LH Side:

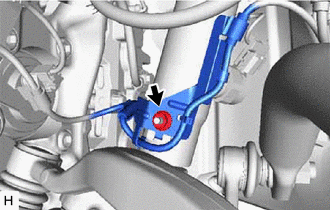

- Install the sensor clamp with the bolt.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
NOTE:Do not twist the skid control sensor wire when installing it.

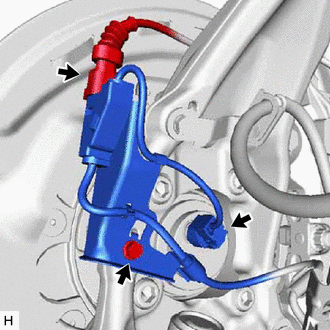

- Connect the skid control sensor wire connector.

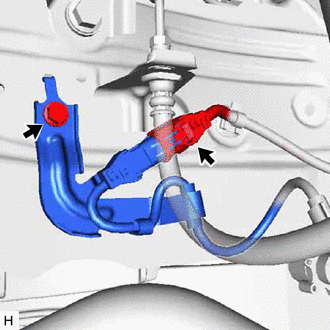

- Install the sensor clamp with the bolt.
- for RH Side:
- Install the sensor clamp with the bolt.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
NOTE:Do not twist the skid control sensor wire when installing it.

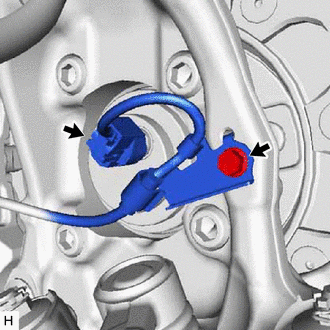

- Connect the skid control sensor wire connector.
- Connect the pad wear indicator connector.
- Install the sensor clamp with the bolt.
- Install the sensor clamp with the nut.
Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)
- Install the sensor clamp with the bolt.
Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)
NOTE:Do not twist the skid control sensor wire when installing it.
- Connect the skid control sensor wire connector.
- for LH Side:
- INSTALL FRONT WHEEL
Refer to INSTALLATION [01/2017 - 05/2023] , or refer to INSTALLATION [05/2023 - ]
- CONNECT BRAKE BOOSTER PUMP CONNECTOR
- With the power switch off, connect the 2 brake booster pump connectors.
- Clear the DTCs.
Refer to DTC CHECK / CLEAR [01/2017 - 09/2018] , or refer to DTC CHECK / CLEAR [09/2018 - ]
- CHECK FOR SPEED SENSOR SIGNAL
Refer to TEST MODE PROCEDURE [01/2017 - 05/2023] , or refer to TEST MODE PROCEDURE [05/2023 - ]
