Components [01/2017 - ]

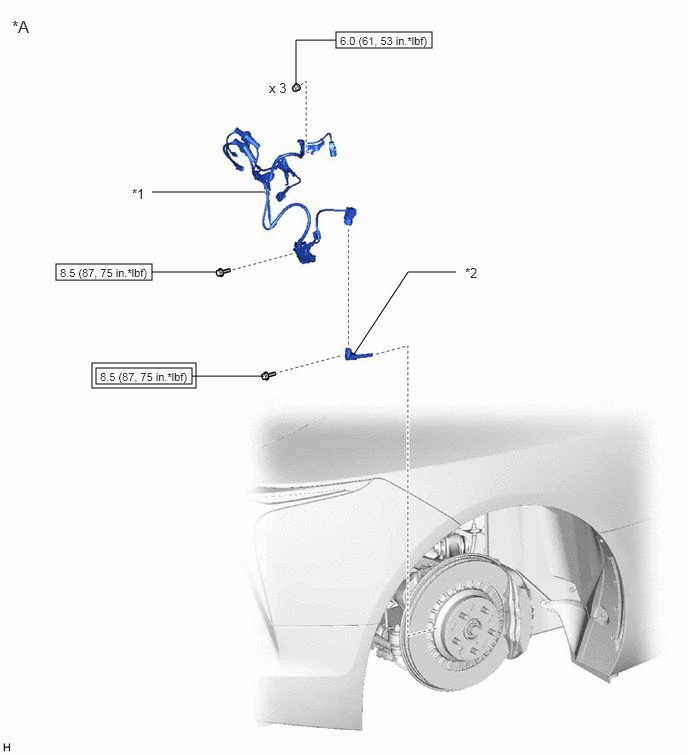

Fig 1: Rear Speed Sensor Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for LH Side	-	-
*1	SKID CONTROL SENSOR WIRE	*2	REAR SPEED SENSOR LH
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque

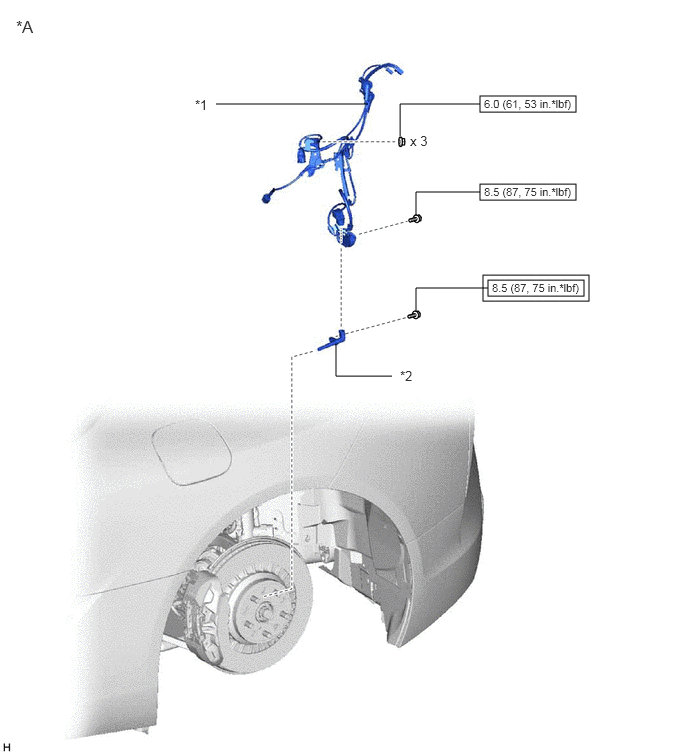

Fig 2: Rear Speed Sensor Replacement Components With Torque Specifications (2 Of 2)

*A	for RH Side	-	-
*1	SKID CONTROL SENSOR WIRE	*2	REAR SPEED SENSOR RH
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
