Components [01/2017 - ]

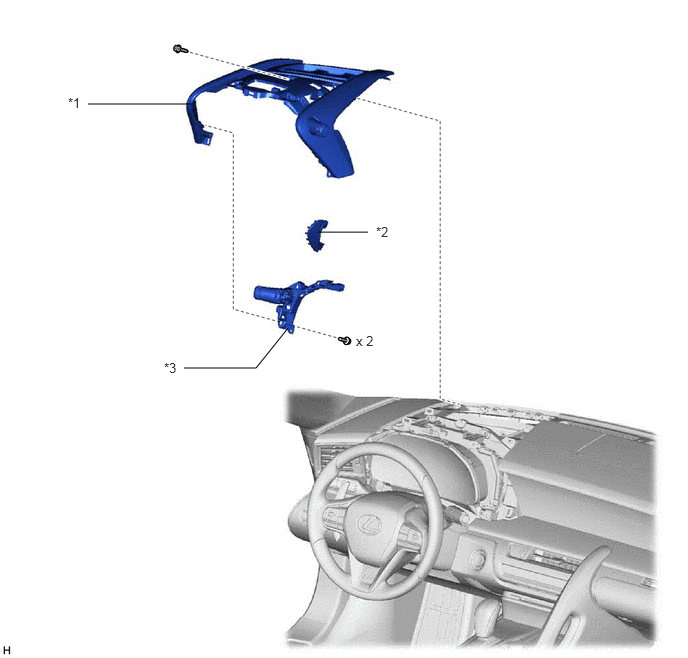

Fig 1: VSC Off Switch Replacement Components
GTY815544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 METER HOOD SUB-ASSEMBLY *2 NO. 2 INSTRUMENT PANEL HOLE COVER
*3 VSC OFF SWITCH (NO. 2 COMBINATION SWITCH ASSEMBLY) - -
