Inspection [01/2017 - ]: Procedure

  1. INSPECT VSC OFF SWITCH (COMBINATION SWITCH ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

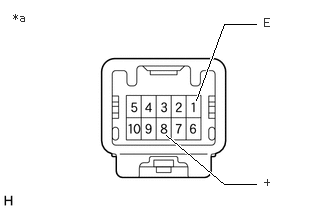

      GTY836959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (VSC OFF Switch (Combination Switch Assembly))

      Standard Resistance

      Tester Connection Condition Specified Condition
      8 (+) - 1 (E) Switch pushed Below 1 Ω
      Switch not pushed 10 kΩ or higher

      If the result is not as specified, replace the VSC OFF switch (combination switch assembly).

    2. Apply battery voltage to the connector and check the illumination conditions.

      OK

      Measurement Condition Specified Condition
      Battery positive (+) → 10 (ILL+)
      Battery negative (-) → 6 (ILL-)      		 Illuminates

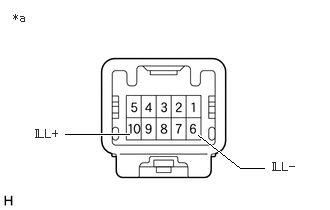

      GTY819232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (VSC OFF Switch (Combination Switch Assembly))

      If the result is not as specified, replace the VSC OFF switch (combination switch assembly).
