Installation [01/2017 - ]: Procedure

  1. INSTALL VSC OFF SWITCH (NO. 2 COMBINATION SWITCH ASSEMBLY)

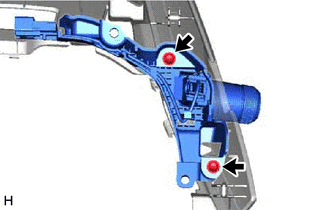

    1. Install the VSC OFF switch (No. 2 combination switch assembly) to the console box ornament with the 2 screws.
      GTY790371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 2 INSTRUMENT PANEL HOLE COVER

    Refer to PROCEDURE - Step 3

  3. INSTALL METER HOOD SUB-ASSEMBLY

    Refer to INSTALLATION [01/2017 - 06/2019] , or refer to INSTALLATION [06/2019 - 04/2020] , or refer to INSTALLATION [04/2020 - 05/2023] , or refer to INSTALLATION [05/2023 - ]
