Removal [01/2017 - 05/2023]: Procedure
- PRECAUTION
Refer to PRECAUTION [01/2017 - ]
WARNING:Be sure to read Precaution thoroughly before servicing.
Refer to PRECAUTION [01/2017 - 04/2020] , or refer to PRECAUTION [04/2020 - 05/2023]
NOTE:After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notice before proceeding with work.
Refer to PRECAUTION [01/2017 - 05/2023]
- REMOVE NO. 2 DECK BOARD
Refer to PROCEDURE - Step 11 [01/2017 - 01/2021] , or refer to PROCEDURE - Step 12 [01/2021 - 05/2023]
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 2
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [01/2017 - 04/2020] , or refer to INITIALIZATION [04/2020 - 05/2023]
- REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to REMOVAL [01/2017 - 05/2023]
- REMOVE NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY
Refer to PROCEDURE - Step 19 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 19 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 19 [04/2020 - 05/2023]
- REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
Refer to PROCEDURE - Step 31 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 31 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 31 [04/2020 - 05/2023]

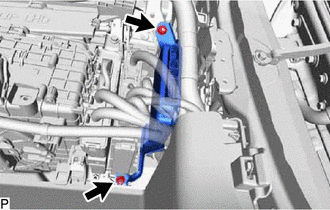

- REMOVE FRONT STEERING CONTROL ECU
