Removal [01/2017 - ]: Procedure

  1. REMOVE METER HOOD SUB-ASSEMBLY

    Refer to REMOVAL [01/2017 - 06/2019] , or refer to REMOVAL [06/2019 - 04/2020] , or refer to REMOVAL [04/2020 - 05/2023] , or refer to REMOVAL [05/2023 - ]

  2. REMOVE INSTRUMENT PANEL HOLE COVER

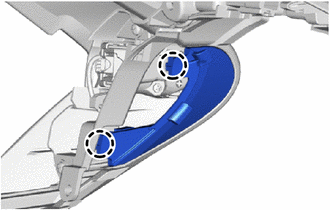

    1. Detach the 2 claws and remove the instrument panel hole cover.
      GTY809215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE ABSORBER CONTROL SWITCH (COMBINATION SWITCH ASSEMBLY)

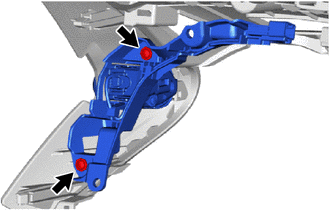

    1. Remove the 2 screws and absorber control switch (combination switch assembly).
      GTY809171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
