Components [01/2017 - ]

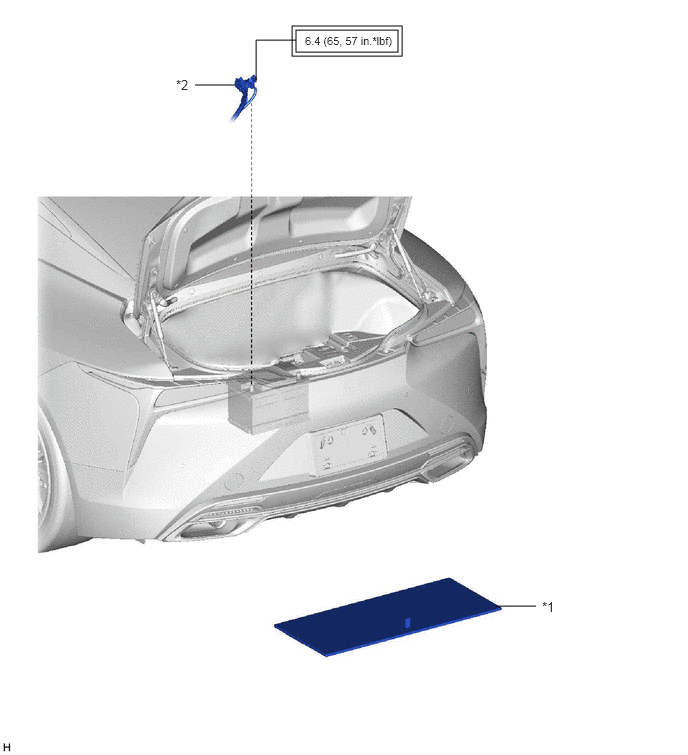

Fig 1: Front Acceleration Sensor Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 2 DECK BOARD	*2	NEGATIVE AUXILIARY BATTERY TERMINAL
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)	-	-

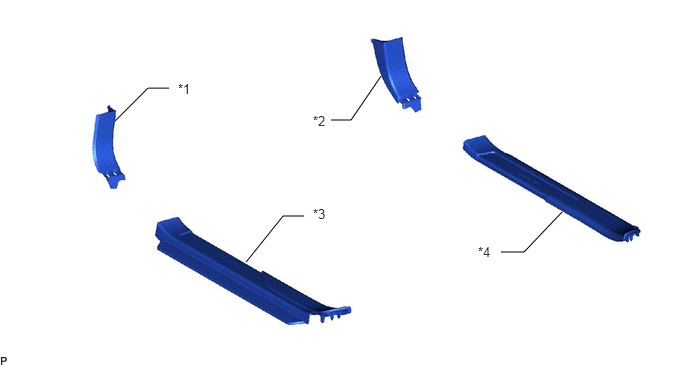

Fig 2: Front Acceleration Sensor Replacement Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT DOOR OPENING TRIM COVER LH	*2	FRONT DOOR OPENING TRIM COVER RH
*3	FRONT DOOR SCUFF PLATE LH	*4	FRONT DOOR SCUFF PLATE RH

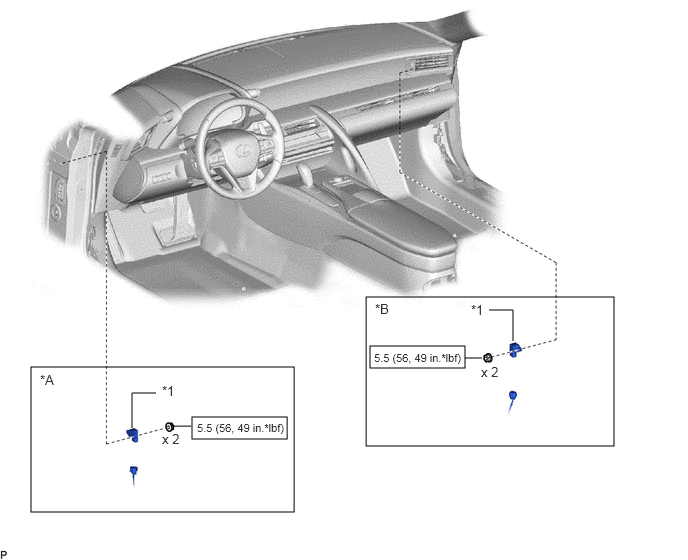

Fig 3: Front Acceleration Sensor Replacement Components With Torque Specifications (3 Of 3)

*A	for LH Side	*B	for RH Side
*1	ACCELERATION SENSOR	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
