Parts Location [12/2017 - 10/2023]: Illustration

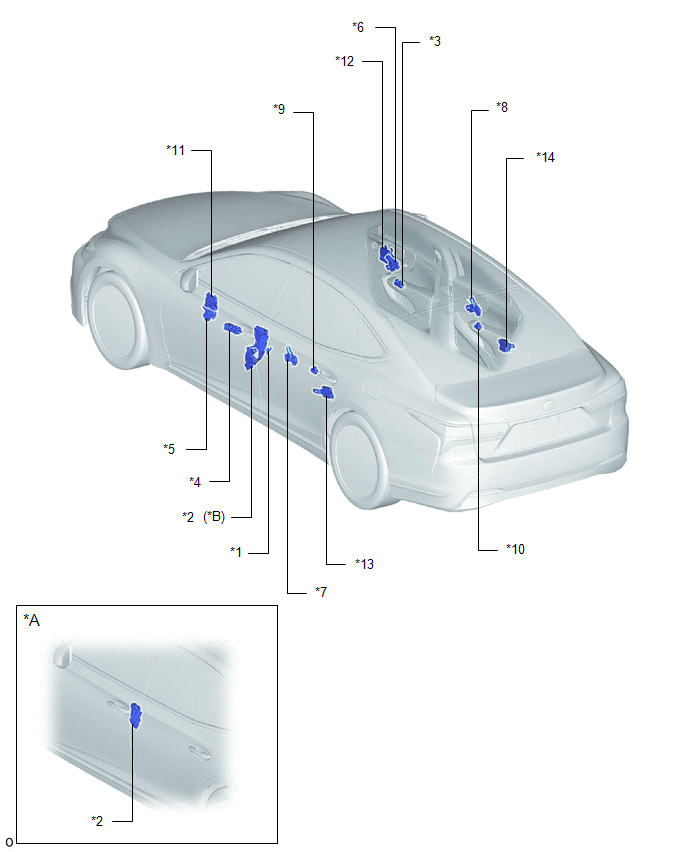

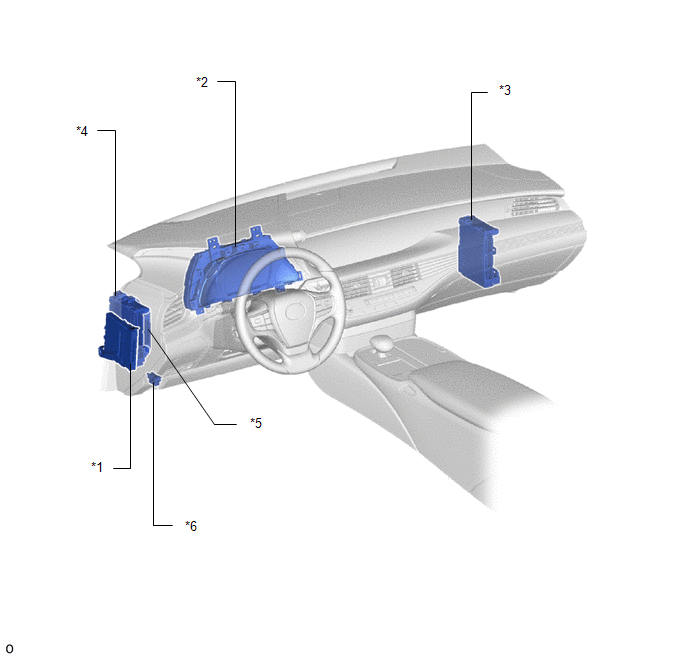

Fig 1: Power Window Control System Components Locations (1 Of 2) [12/2017 - 10/2023]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o Door Closer System	*B	w/ Door Closer System
*1	FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH	*2	FRONT DOOR WITH MOTOR LOCK ASSEMBLY LH
*3	POWER WINDOW REGULATOR SWITCH ASSEMBLY	*4	MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
*5	FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH	*6	FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH
*7	REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH	*8	REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH
*9	REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY LH	*10	REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY RH
*11	FRONT MULTIPLEX NETWORK DOOR ECU LH	*12	FRONT MULTIPLEX NETWORK DOOR ECU RH
*13	REAR MULTIPLEX NETWORK DOOR ECU LH	*14	REAR MULTIPLEX NETWORK DOOR ECU RH

Fig 1: Power Window Control System Components Locations (1 Of 2) [12/2017 - 10/2023]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)	*2	COMBINATION METER ASSEMBLY
*3	PASSENGER SIDE JUNCTION BLOCK ASSEMBLY - MPX-B P NO. 1 FUSE - IG1 P NO. 2 FUSE - DOOR R/R 1 FUSE	*4	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - DOOR D NO. 1 FUSE - IG1 D NO. 1 FUSE - DOOR R/L 1 FUSE
*5	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*6	DLC3
