Components [10/2020 - ]

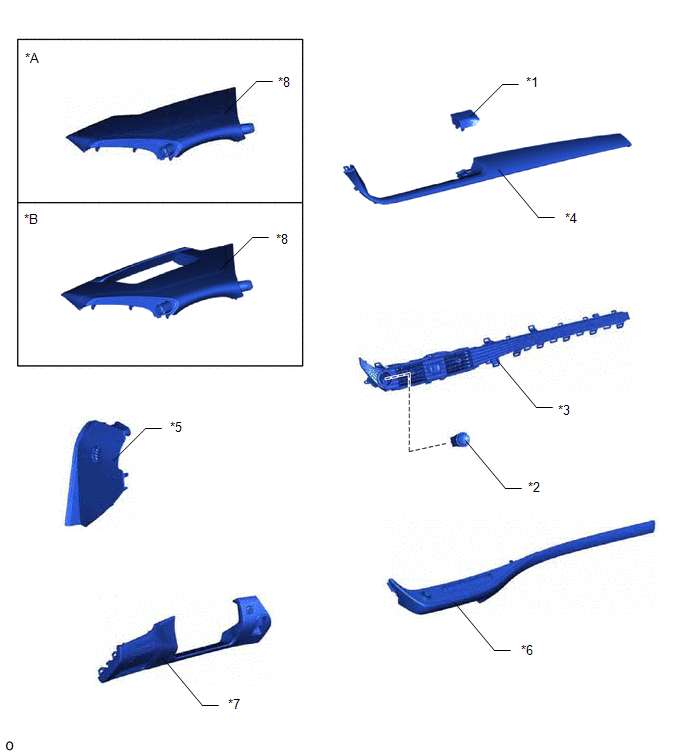

Fig 1: Engine Switch Replacement Components [10/2020 - ]
GTY965531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/o Headup Display *B w/ Headup Display
*1 CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY *2 ENGINE SWITCH (PUSH START SWITCH)
*3 INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY *4 INSTRUMENT PANEL SAFETY PAD INSERT SUB-ASSEMBLY
*5 INSTRUMENT SIDE PANEL LH *6 LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
*7 LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY *8 NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
