Components [12/2017 - 10/2020]

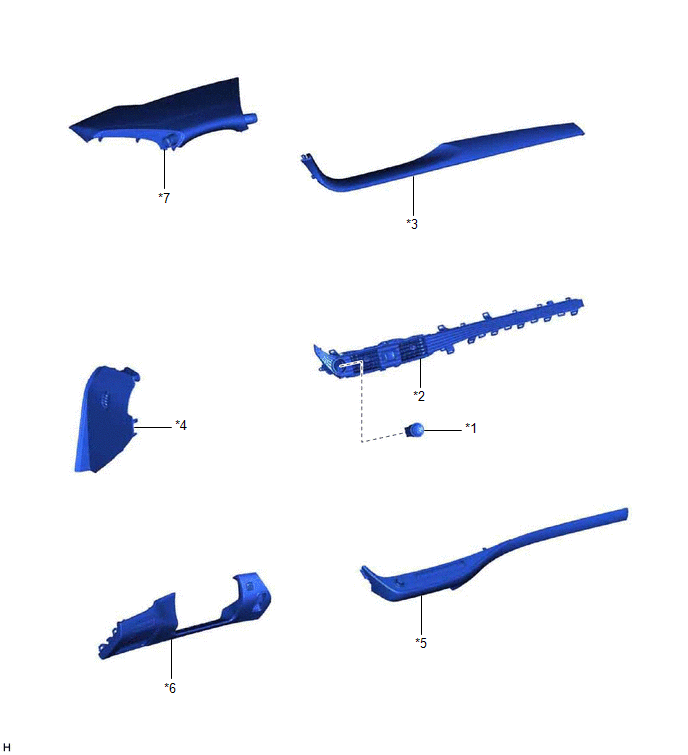

Fig 1: Engine Switch Replacement Components [12/2017 - 10/2020]
GTY972141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ENGINE SWITCH (PUSH START SWITCH) *2 INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY
*3 INSTRUMENT PANEL SAFETY PAD INSERT SUB-ASSEMBLY *4 INSTRUMENT SIDE PANEL LH
*5 LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY *6 LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY
*7 NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY - -
