Inspection [12/2017 - 10/2020]: Procedure
- INSPECT CAM TIMING OIL CONTROL SOLENOID ASSEMBLY LH
- Check the resistance.

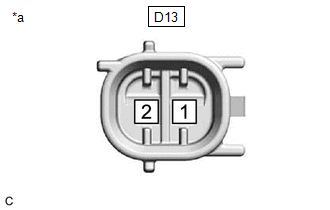

*a Component without harness connected
(Cam Timing Oil Control Solenoid Assembly LH)- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition D13-1 - D13-2 0 °C (32 °F) 6.3 to 7.3 Ω D13-1 - D13-2 20 °C (68 °F) 6.9 to 7.9 Ω D13-1 - D13-2 40 °C (104 °F) 7.4 to 8.6 Ω If the result is not as specified, replace the cam timing oil control solenoid assembly LH.
- Measure the resistance according to the value(s) in the table below.
- Stroke Amount Inspection
- Using vernier calipers, measure length (A) and (B) with the shaft of the cam timing oil control solenoid assembly LH set in the respective positions shown in the illustration.NOTE:
Do not apply battery voltage to the terminals of the cam timing oil control solenoid assembly LH.
HINT:
If the shaft does not extend under its own weight, extend the shaft with your fingers.
*a Shaft Side Facing Down *b Shaft Side Facing Up *c Shaft - Calculate the stroke amount based on the difference of length (A) and (B).
Standard
4.3 mm (0.169 in.) or more
HINT:
Stroke amount = length (A) - length (B)
If the value is not as specified, replace the cam timing oil control solenoid assembly LH.
- Using vernier calipers, measure length (A) and (B) with the shaft of the cam timing oil control solenoid assembly LH set in the respective positions shown in the illustration.
- Check the resistance.
