Components [12/2017 - 10/2020]

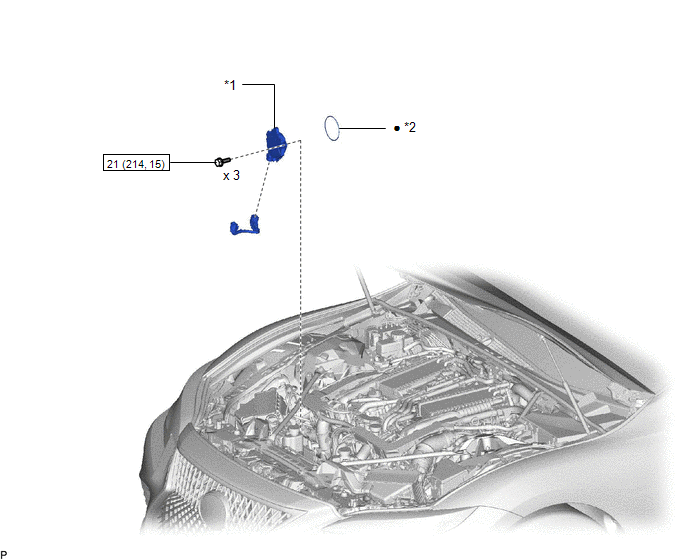

Fig 1: Camshaft Timing Control Motor (For Bank 1) Replacement Components With Torque Specifications [12/2017 - 10/2020]
| *1 | CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY RH | *2 | CAM TIMING CONTROL MOTOR O-RING RH |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
