Removal [12/2017 - 10/2020]: Procedure

REMOVE INTAKE AIR SURGE TANK ASSEMBLY WITH INTERCOOLER
Refer to REMOVAL [12/2017 - 10/2020]

REMOVE CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY LH

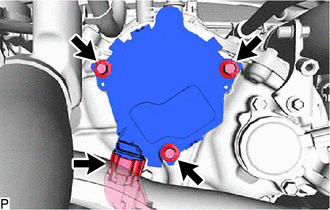

Disconnect the cam timing control motor with EDU assembly LH connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 3 bolts and cam timing control motor with EDU assembly LH from the No. 2 timing gear cover assembly.
NOTE:
If the cam timing control motor with EDU assembly LH has been struck or dropped, replace it.

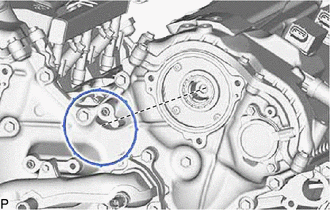

Remove the cam timing control motor O-ring LH from the No. 2 timing gear cover assembly.
