Inspection [12/2017 - ]: Procedure

  1. INSPECT NO. 3 TURBO PRESSURE SENSOR
    1. Measure the resistance according to the value(s) in the table below.

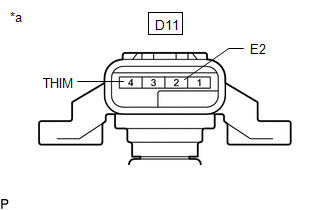

      GTY815614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (No. 3 Turbo Pressure Sensor)

      Standard Resistance

      Tester Connection Condition Specified Condition
      D11-4 (THIM) - D11-2 (E2) - 20°C (- 36°F) 14.6 to 17.8 kΩ
      20°C (68°F) 2.21 to 2.69 kΩ
      80°C (176°F) 0.290 to 0.354 kΩ

      If the result is not as specified, replace the No. 3 turbo pressure sensor.
