Removal [12/2017 - ]: Procedure

Refer to PROCEDURE - Step 11 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 11 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 11 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 11 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 11 [10/2023 - ]

Refer to PROCEDURE - Step 9 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 9 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 9 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 9 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 9 [10/2023 - ]

Refer to PROCEDURE - Step 8 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 8 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 8 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 8 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 8 [10/2023 - ]

Refer to PROCEDURE - Step 10 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 10 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 10 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 10 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 10 [10/2023 - ]

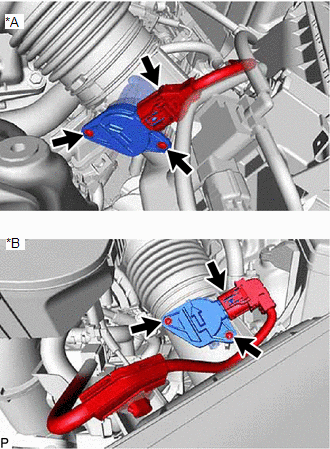

1. Disconnect the 2 mass air flow meter sub-assembly connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	for Bank 1
   *B	for Bank 2

2. Remove the 4 screws and 2 mass air flow meter sub-assemblies.
   NOTE:

   If the mass air flow meter sub-assembly has been struck or dropped, replace it.
