Components [12/2017 - 10/2023]

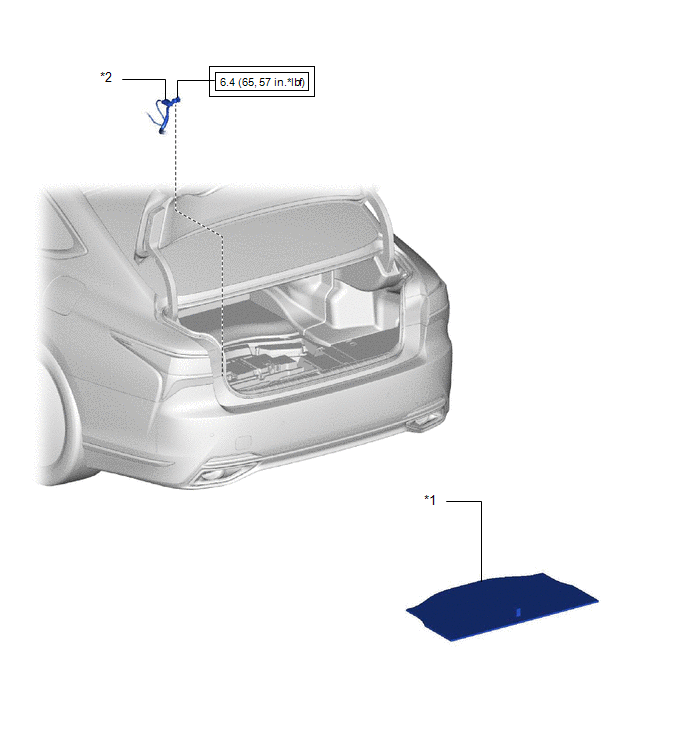

Fig 1: Steering Control ECU Replacement Components With Torque Specifications [12/2017 - 10/2023] (1 Of 3)
| *1 | LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY | *2 | NEGATIVE BATTERY TERMINAL |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) | - | - |

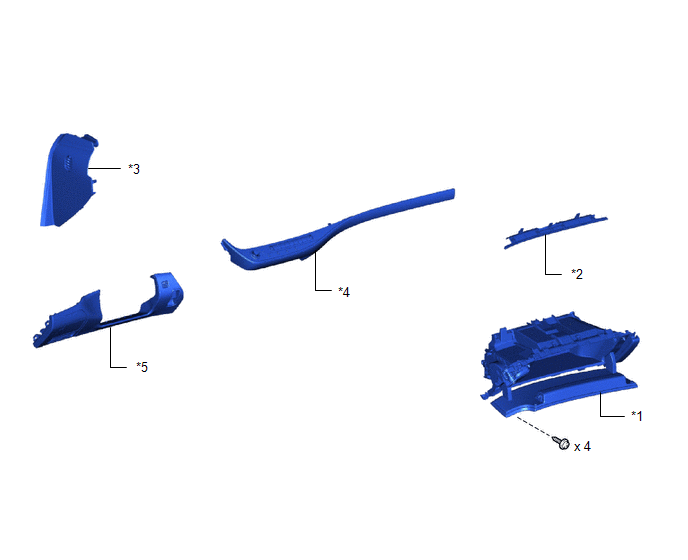

| *1 | GLOVE COMPARTMENT DOOR ASSEMBLY | *2 | GLOVE COMPARTMENT DOOR PAD PLATE |
| *3 | INSTRUMENT SIDE PANEL LH | *4 | LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY |
| *5 | LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY | - | - |

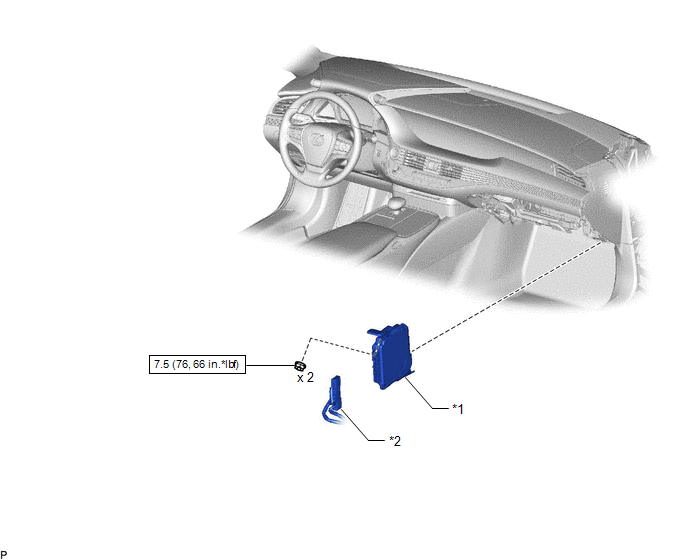

Fig 3: Steering Control ECU Replacement Components With Torque Specifications [12/2017 - 10/2023] (3 Of 3)
| *1 | FRONT STEERING CONTROL ECU | *2 | CONNECTOR |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
