Components [12/2017 - ]

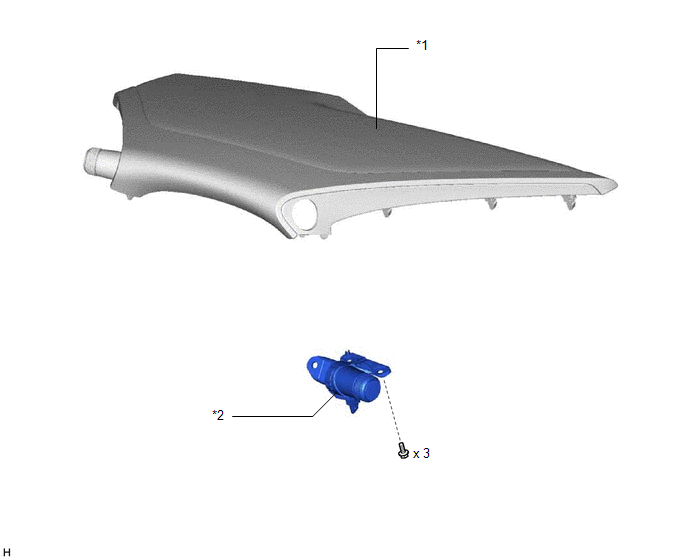

Fig 1: Absorber Control Switch Replacement Components
GTY810890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY *2 SATELLITE SWITCH SET (ABSORBER CONTROL SWITCH)
