Installation [12/2017 - ]: Procedure

  1. INSTALL SATELLITE SWITCH SET (ABSORBER CONTROL SWITCH)

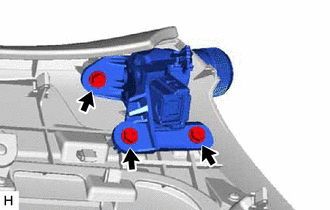

    1. Install the satellite switch set (absorber control switch) with the 3 screws.
      GTY825166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to INSTALLATION [12/2017 - 10/2020] , or refer to INSTALLATION [10/2020 - 10/2022] , or refer to INSTALLATION [10/2022 - 10/2023] , or refer to INSTALLATION [10/2023 - ]
