Components [12/2017 - 10/2023]

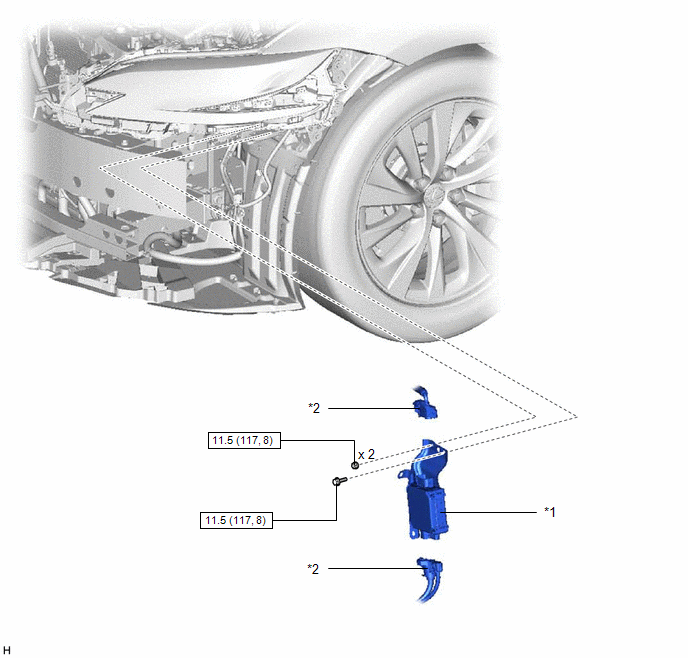

Fig 1: Front Active Stabilizer Control ECU Replacement Components With Torque Specifications [12/2017 - 10/2023]
GTY783920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT ACTIVE STABILIZER CONTROL ECU *2 CONNECTOR
N.m (kgf/cm, ft.lbf): Specified torque - -
