Installation [12/2017 - 10/2020]: Procedure

  1. INSTALL FRONT ACTIVE STABILIZER CONTROL ECU

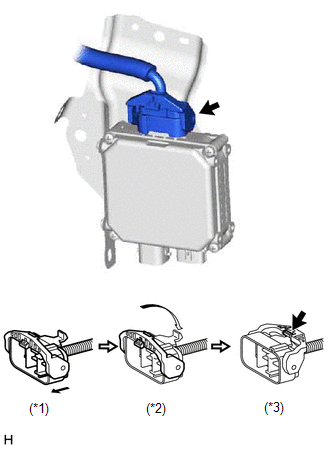

    1. Connect the front active stabilizer control ECU connector.
      GTY778356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the front active stabilizer control ECU connector. (*1)
      2. Rotate the lever in the direction of the arrow until a "click" sound is heard. (*2)
      3. Lock the lever's lock. (*3)

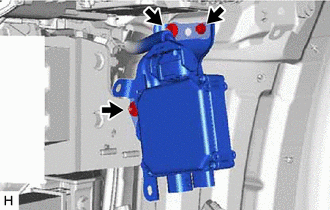

    2. Install the front active stabilizer control ECU with the bolt and 2 nuts.
      GTY778884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 11.5 N.m (117 kgf/cm, 8 ft.lbf)

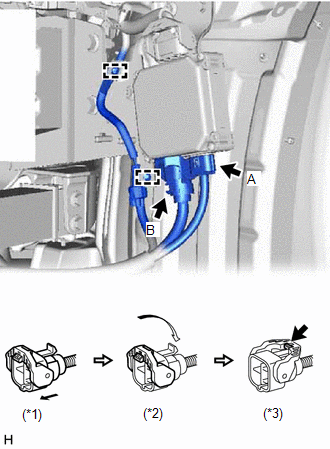

    3. Connect the front active stabilizer control actuator connector labeled A.
      GTY783523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the front active stabilizer control actuator connector labeled B.
      1. Connect the front active stabilizer control actuator connector. (*1)
      2. Rotate the lever in the direction of the arrow until a "click" sound is heard. (*2)
      3. Lock the lever's lock. (*3)
    5. Connect the 2 wire harness clamps.
  2. INSTALL HEADLIGHT ASSEMBLY LH

    Refer to INSTALLATION [12/2017 - 10/2020]

  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to INSTALLATION [12/2017 - 10/2020]

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [12/2017 - 09/2018] , or refer to INITIALIZATION [09/2018 - 10/2020]
