Components [10/2022 - ]

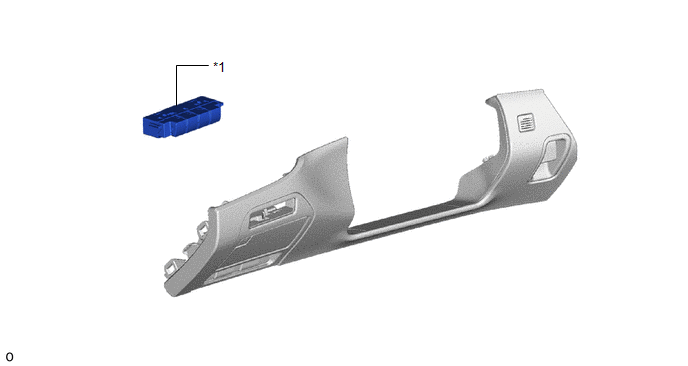

Fig 1: Height Control Switch Replacement Components [10/2022 - ]
GTY1122608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 INTEGRATION CONTROL AND PANEL ASSEMBLY (HEIGHT CONTROL SWITCH) - -
