Inspection [10/2022 - ]: Procedure
- INSPECT INTEGRATION CONTROL AND PANEL ASSEMBLY (HEIGHT CONTROL SWITCH)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Switch Condition Specified Condition G6-4 (HSW) - G6-16 (IGH) Switch pushed Below 10 Ω Switch not pushed 10 kΩ or higher If the result is not as specified, replace the integration control and panel assembly (height control switch).

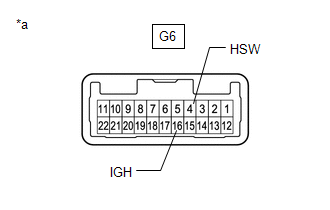

*a Component without harness connected
(Integration Control and Panel Assembly (Height Control Switch)) - Apply battery voltage between the terminals of the switch, and check the illumination condition of the integration control and panel assembly (height control switch).
Standard
Tester Connection Specified Condition Battery positive (+) → G6-8 (ILL+)
Battery negative (-) → G6-15 (ILL-)Illuminates If the result is not as specified, replace the integration control and panel assembly (height control switch).

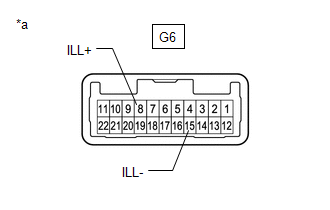

*a Component without harness connected
(Integration Control and Panel Assembly (Height Control Switch))
- Measure the resistance according to the value(s) in the table below.
