Installation [12/2017 - 10/2022]: Procedure

  1. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY (HEIGHT CONTROL SWITCH)

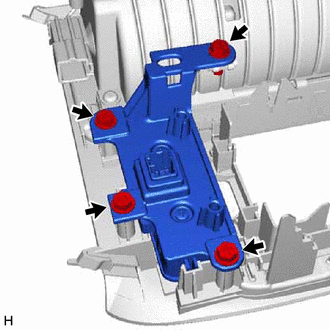

    1. Install the integration control and panel assembly (height control switch) to the upper console panel sub-assembly with the 4 screws.
      GTY825159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL REMOTE OPERATION CONTROLLER ASSEMBLY

    Refer to PROCEDURE - Step 1

  3. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to INSTALLATION [12/2017 - 10/2020] , or refer to INSTALLATION [10/2020 - 10/2022]
