Components [12/2017 - ]

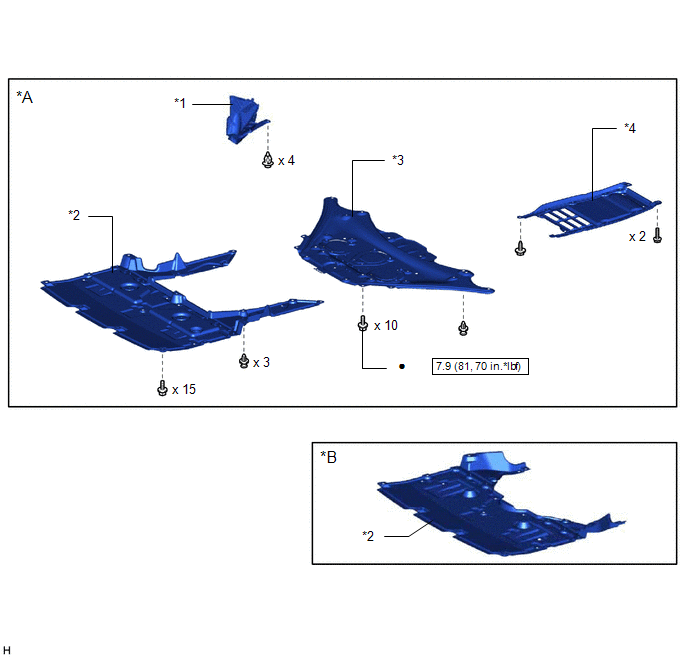

Fig 1: Height Control Way Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for 2WD	*B	for AWD
*1	ENGINE SIDE COVER RH	*2	NO. 1 ENGINE UNDER COVER ASSEMBLY
*3	NO. 2 ENGINE UNDER COVER ASSEMBLY	*4	TRANSMISSION UNDER COVER
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
*	Precoated part	-	-

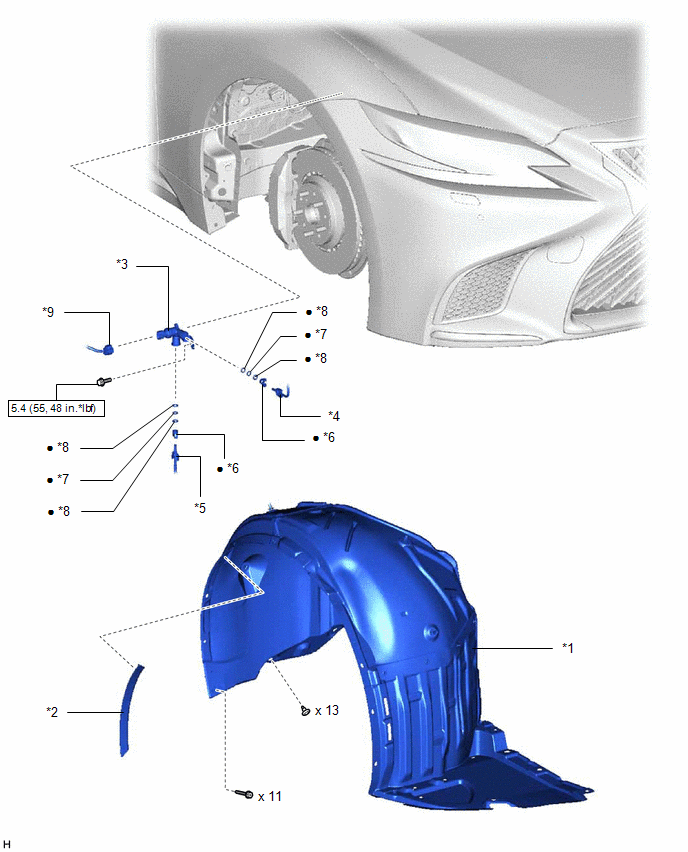

Fig 2: Height Control Way Replacement Components With Torque Specifications (2 Of 2)

*1	FRONT FENDER LINER RH	*2	FRONT FENDER WHEEL OPENING MOULDING RH
*3	HEIGHT CONTROL WAY	*4	NO. 8 HEIGHT CONTROL TUBE
*5	REAR NO. 8 HEIGHT CONTROL TUBE	*6	NO. 2 CONNECTOR
*7	PLATE	*8	O-RING
*9	CONNECTOR	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
