Components [12/2017 - ]

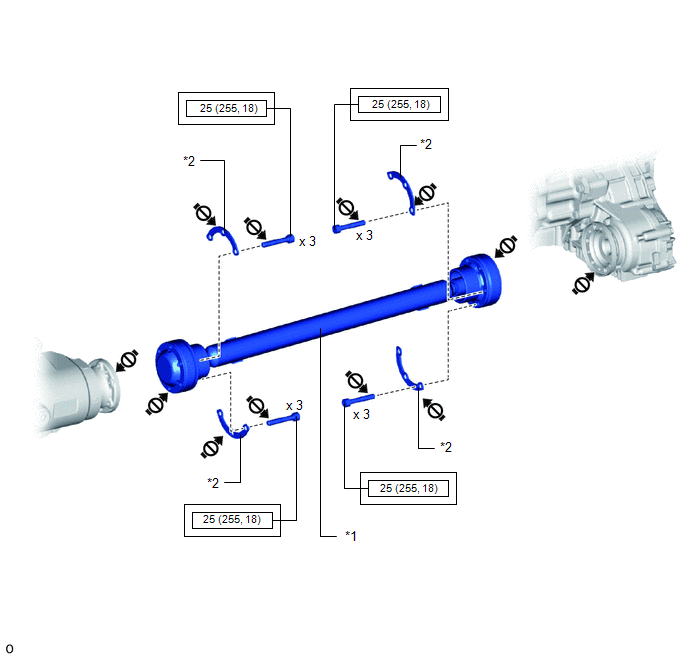

Fig 1: Transfer Assembly Replacement Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT PROPELLER SHAFT ASSEMBLY	*2	CONSTANT VELOCITY UNIVERSAL JOINT WASHER
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		Do not apply lubricants

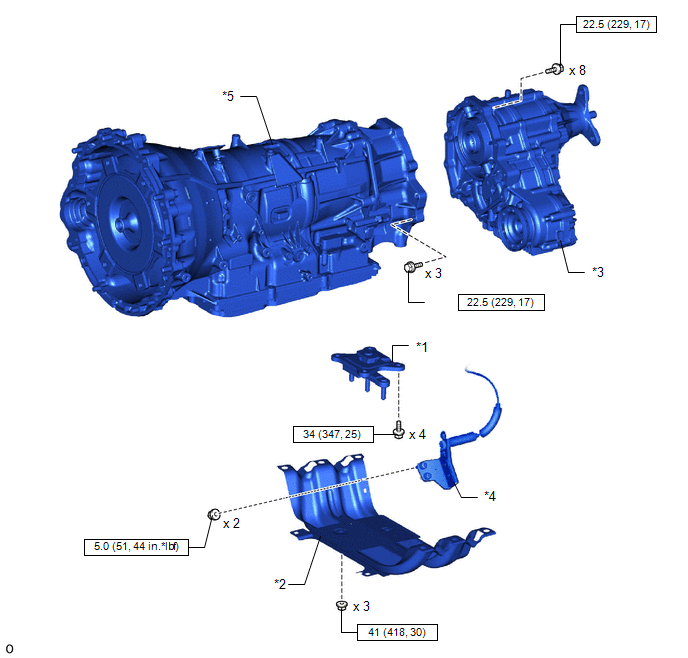

Fig 2: Transfer Assembly Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR ENGINE MOUNTING INSULATOR	*2	REAR ENGINE MOUNTING MEMBER
*3	TRANSFER ASSEMBLY	*4	NO. 2 PARKING RELEASE CABLE BRACKET SUB-ASSEMBLY
*5	AUTOMATIC TRANSMISSION ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	*	Precoated part
•	Non-reusable part	-	-

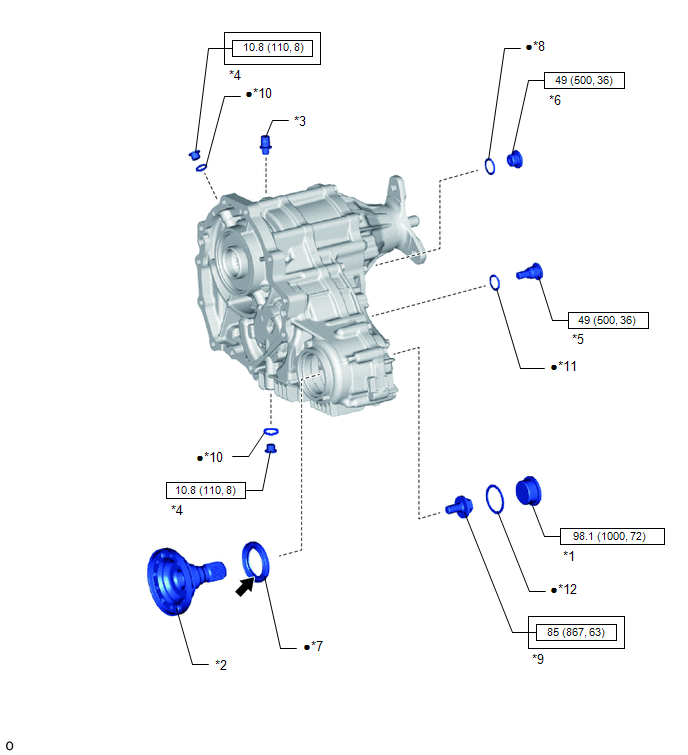

Fig 3: Transfer Assembly Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 2 TRANSFER CASE PLUG	*2	OUTPUT SHAFT COMPANION FLANGE SUB-ASSEMBLY
*3	TRANSFER CASE BREATHER PLUG	*4	TRANSFER CASE PLUG
*5	TRANSFER DRAIN PLUG	*6	TRANSFER FILLER PLUG
*7	TRANSFER OUTPUT SHAFT COMPANION FLANGE OIL SEAL	*8	TRANSFER FILLER PLUG GASKET
*9	TRANSFER OUTPUT SHAFT COMPANION FLANGE BOLT	*10	O-RING
*11	TRANSFER DRAIN PLUG GASKET	*12	TRANSFER CASE GASKET
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
•	Non-reusable part		MP grease

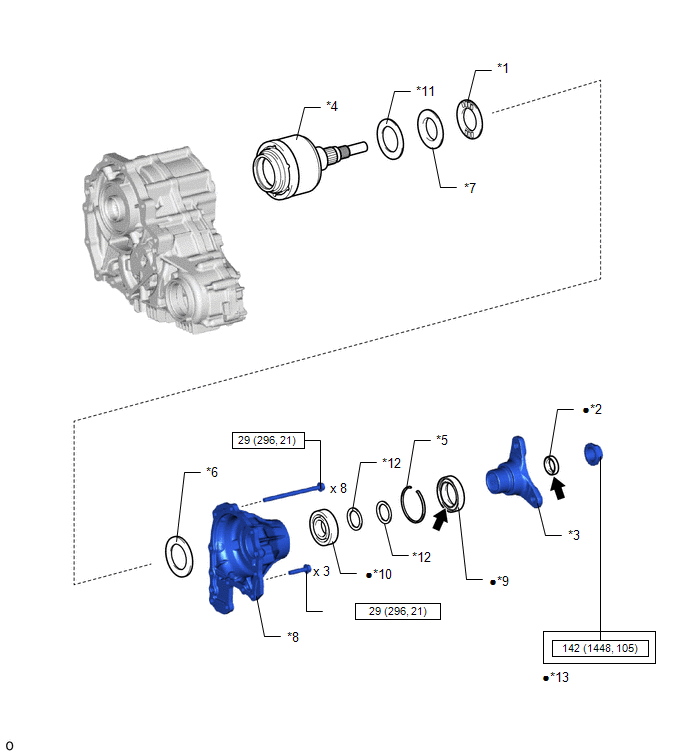

Fig 4: Transfer Assembly Replacement Components With Torque Specifications (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	DIFFERENTIAL CASE NEEDLE ROLLER BEARING	*2	DRIVE PINION COMPANION FLANGE OIL SEAL
*3	DRIVE PINION COMPANION FLANGE SUB-ASSEMBLY	*4	NO. 1 DIFFERENTIAL CASE SUB-ASSEMBLY
*5	NO. 1 DIFFERENTIAL CASE SUB-ASSEMBLY HOLE SNAP RING	*6	NO. 1 TRANSFER THRUST BEARING RACE
*7	NO. 2 TRANSFER THRUST BEARING RACE	*8	TRANSFER EXTENSION HOUSING
*9	TRANSFER EXTENSION HOUSING OIL SEAL	*10	TRANSFER OUTPUT SHAFT CYLINDRICAL ROLLER BEARING
*11	TRANSFER OUTPUT SHAFT SHIM	*12	TRANSFER OUTPUT SHAFT WASHER
*13	TRANSFER OUTPUT SHAFT NUT	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
•	Non-reusable part		MP grease
*	Precoated part	-	-

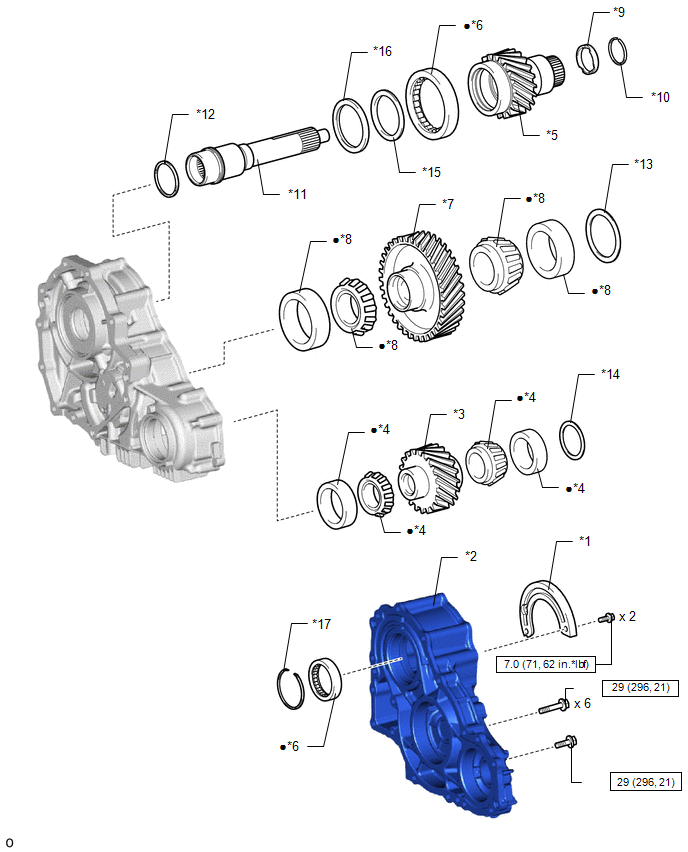

Fig 5: Transfer Assembly Replacement Components With Torque Specifications (5 Of 6)

*1	BREATHER OIL DEFLECTOR	*2	REAR TRANSFER CASE
*3	TRANSFER COUNTER GEAR ASSEMBLY	*4	TRANSFER COUNTER GEAR BEARING
*5	TRANSFER FRONT DRIVE GEAR ASSEMBLY	*6	TRANSFER FRONT DRIVE GEAR ASSEMBLY CYLINDRICAL ROLLER BEARING
*7	TRANSFER IDLER GEAR ASSEMBLY	*8	TRANSFER IDLER GEAR BEARING
*9	TRANSFER INPUT GEAR STOPPER	*10	TRANSFER INPUT GEAR STOPPER SHAFT SNAP RING
*11	TRANSFER INPUT SHAFT	*12	TRANSFER OIL SEAL RING
*13	TRANSFER IDLER GEAR SHIM	*14	TRANSFER COUNTER GEAR SHIM
*15	NO. 3 TRANSFER THRUST BEARING RACE	*16	TRANSFER COUNTER GEAR SHIM
*17	NO. 3 TRANSFER THRUST BEARING RACE	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
*	Precoated part	-	-

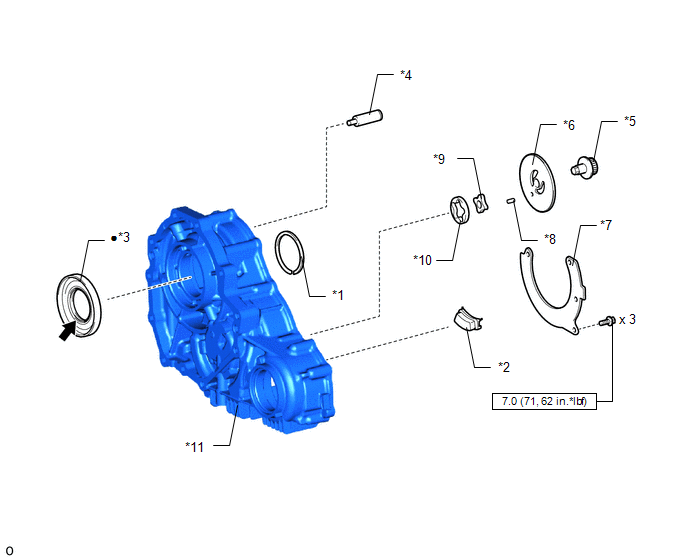

Fig 6: Transfer Assembly Replacement Components With Torque Specifications (6 Of 6)

*1	FORWARD CLUTCH DRUM OIL SEAL RING	*2	NO. 1 TRANSFER OIL STRAINER
*3	TRANSFER FRONT CASE OIL SEAL	*4	TRANSFER FRONT DRIVE GEAR PIN
*5	TRANSFER OIL PUMP DRIVE SHAFT	*6	TRANSFER OIL PUMP PLATE SUB-ASSEMBLY
*7	TRANSFER OIL SEPARATOR	*8	TRANSFER OIL PUMP PLATE PIN
*9	TRANSFER OIL PUMP DRIVE ROTOR	*10	TRANSFER OIL PUMP DRIVEN ROTOR
*11	FRONT TRANSFER CASE	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	MP grease	-	-
