Installation [10/2020 - ]: Procedure

INSTALL ENGINE SWITCH (PUSH START SWITCH)

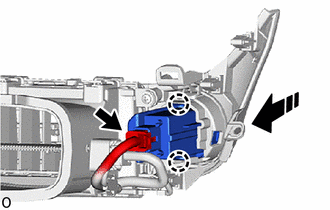

Attach the claw to install the engine switch (push start switch) as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY
Refer to PROCEDURE - Step 23 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 22 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 22 [10/2023 - ]
INSTALL INSTRUMENT PANEL SAFETY PAD INSERT SUB-ASSEMBLY
Refer to PROCEDURE - Step 26 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 25 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 25 [10/2023 - ]
INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 27 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 26 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 26 [10/2023 - ]
INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
Refer to PROCEDURE - Step 31 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 30 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 30 [10/2023 - ]
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
Refer to PROCEDURE - Step 25 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 24 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 24 [10/2023 - ]
INSTALL LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY
Refer to PROCEDURE - Step 33 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 32 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 32 [10/2023 - ]
INSTALL INSTRUMENT SIDE PANEL LH
Refer to PROCEDURE - Step 36 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 35 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 35 [10/2023 - ]
