Installation [12/2017 - 10/2020]: Procedure

  1. INSTALL ENGINE SWITCH (PUSH START SWITCH)

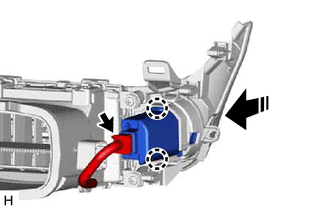

    1. Attach the claw to install the engine switch (push start switch) as shown in the illustration.
      GTY788861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Connect the connector.
  2. INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 21

  3. INSTALL INSTRUMENT PANEL SAFETY PAD INSERT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24

  4. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 23

  5. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 28

  6. INSTALL LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 30

  7. INSTALL INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 9
