Removal [12/2017 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 11 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 11 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 11 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 11 [10/2023 - ]

  2. REMOVE RADIATOR COVER PLATE

    Refer to PROCEDURE - Step 9 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 9 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 9 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 9 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 9 [10/2023 - ]

  3. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 8 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 8 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 8 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 8 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 8 [10/2023 - ]

  4. REMOVE LOWER RADIATOR AIR DEFLECTOR

    Refer to PROCEDURE - Step 10 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 10 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 10 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 10 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 10 [10/2023 - ]

  5. REMOVE IGNITION COIL ASSEMBLY
    1. for Bank 1:
      1. Remove the bolt.
        GTY817302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Detach the 3 wire harness clamps.
        GTY794633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Remove the bolt.
        GTY817300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Remove the intercooler support bracket.

        Refer to PROCEDURE - Step 19 [12/2017 - 10/2020] , or refer to PROCEDURE - Step 18 [10/2020 - ]

      5. Disconnect the 3 ignition coil assembly connectors.

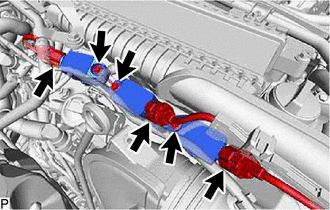

        GTY817308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      6. Remove the 3 bolts and 3 ignition coil assemblies.
        NOTE:

        If a ignition coil assembly has been struck or dropped, replace it.

    2. for Bank 2:
      1. Remove the bolt.
        GTY817301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Detach the 3 wire harness clamps.
        GTY836540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Remove the bolt.
        GTY817299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Remove the No. 2 intercooler support bracket.

        Refer to PROCEDURE - Step 20 [12/2017 - 10/2020] , or refer to PROCEDURE - Step 19 [10/2020 - ]

      5. Disconnect the 3 ignition coil assembly connectors.

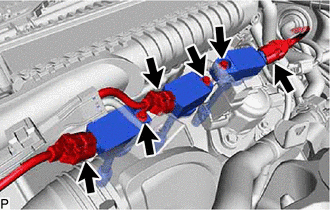

        GTY817306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      6. Remove the 3 bolts and 3 ignition coil assemblies.
        NOTE:

        If a ignition coil assembly has been struck or dropped, replace it.

  6. REMOVE SPARK PLUG

    Refer to PROCEDURE - Step 6
