Installation [12/2017 - 10/2020]: Procedure

INSTALL ACCELERATION SENSOR ASSEMBLY

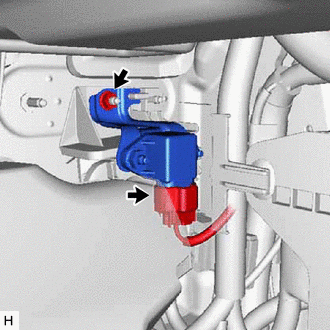

for LH Side:

Connect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the acceleration sensor with the 2 nuts.
Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)
NOTE:
- Avoid any impact to the acceleration sensor.
- Do not drop the acceleration sensor. If it is dropped, replace it with a new one.
Return the floor carpet to its original position.

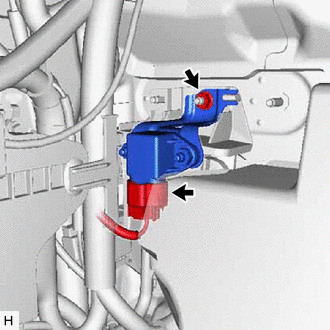

for RH Side:

Connect the connector.

Install the acceleration sensor with the 2 nuts.
Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)
NOTE:
- Avoid any impact to the acceleration sensor.
- Do not drop the acceleration sensor. If it is dropped, replace it with a new one.
Return the floor carpet to its original position.

INSTALL COWL SIDE TRIM BOARD LH
Refer to PROCEDURE - Step 31
INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 32
INSTALL INSTRUMENT SIDE PANEL LH
Refer to PROCEDURE - Step 33
INSTALL FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 42
INSTALL COWL SIDE TRIM BOARD RH
HINT:

Use the same procedure described for the LH side.
INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 36
INSTALL INSTRUMENT SIDE PANEL RH
Refer to PROCEDURE - Step 37
INSTALL FRONT DOOR SCUFF PLATE RH
HINT:

Use the same procedure described for the LH side.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Refer to INSTALLATION [12/2017 - 10/2020]

NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [12/2017 - 09/2018] , or refer to INITIALIZATION [09/2018 - 10/2020]
