Components [12/2017 - ]

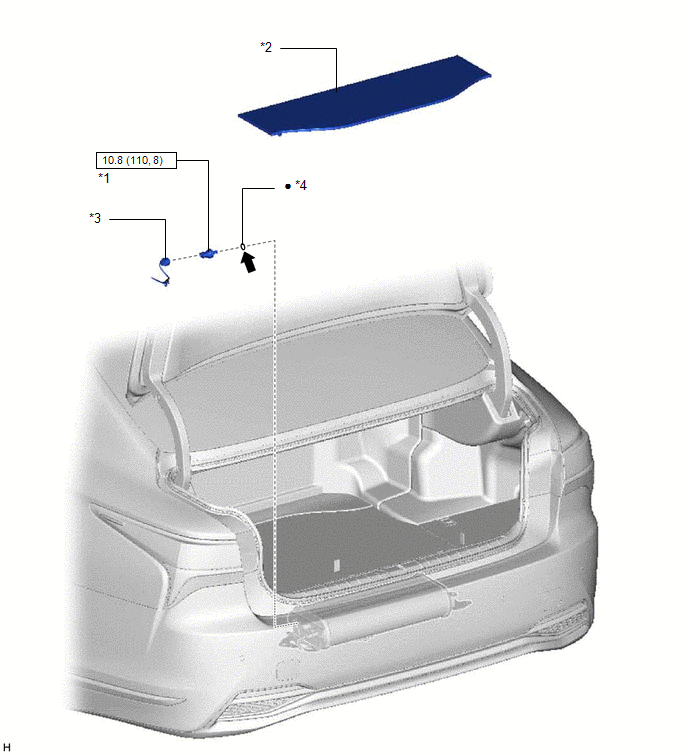

Fig 1: Pressure Sensor Replacement Components With Torque Specifications
GTY827110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 HEIGHT CONTROL PRESSURE SENSOR *2 LUGGAGE COMPARTMENT FLOOR MAT
*3 CONNECTOR *4 O-RING
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Lithium soap base glycol grease - -
