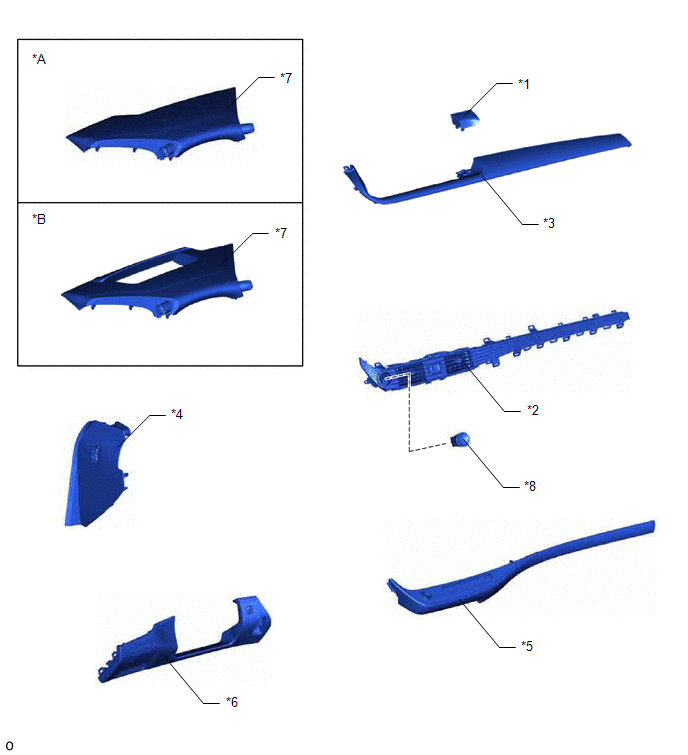

Components [10/2020 - ]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/o Headup Display | *B | w/ Headup Display |
| *1 | CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY | *2 | INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY |
| *3 | INSTRUMENT PANEL SAFETY PAD INSERT SUB-ASSEMBLY | *4 | INSTRUMENT SIDE PANEL LH |
| *5 | LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY | *6 | LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY |
| *7 | NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY | *8 | POWER SWITCH |
